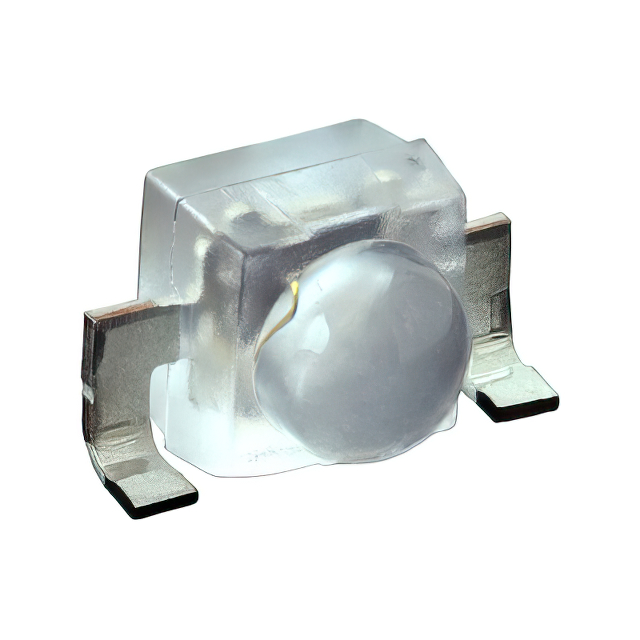

VSMY294310SL
ActiveVishay Semiconductor Opto Division
HIGH SPEED INFRARED EMITTING DIO
VSMY294310SL
ActiveVishay Semiconductor Opto Division
HIGH SPEED INFRARED EMITTING DIO
Description
General part information
VSMY294310SL
Infrared (IR) Emitter 940nm (920nm ~ 960nm) 1.5V 70mA 12mW/sr @ 70mA 50° 2-SMD, Side View
Technical Specifications
Parameters and characteristics for this part
| Specification | VSMY294310SL |
|---|---|
| Current - DC Forward (If) (Max) | 70 mA |
| Mounting Type | Right Angle, Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | Side View |
| Package / Case | 2-SMD, Side View |
| Radiant Intensity (Ie) Min | 12 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 50 ° |
| Voltage - Forward (Vf) (Typ) | 1.5 V |
| Wavelength | 940 nm |
| Wavelength (Maximum) | 960 nm |
| Wavelength (Minimum) | 920 nm |
| Wavelength (Nominal) | 940 nm |
