WM022I,BK

Active

Serpac

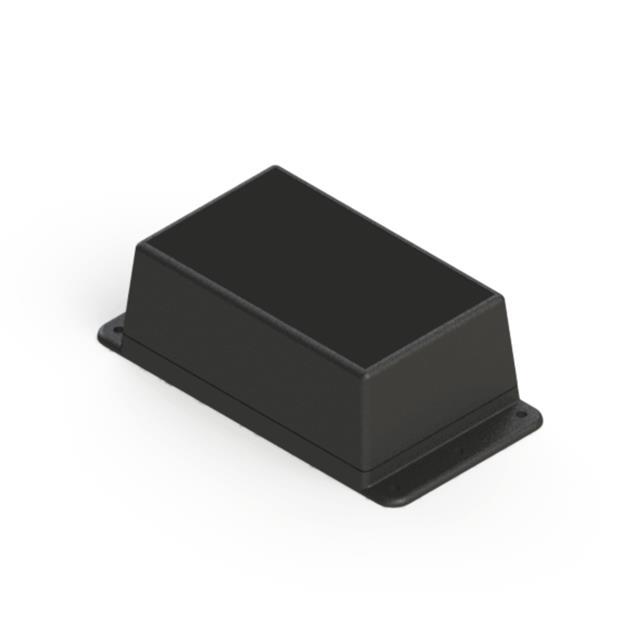

BOX ABS BLACK 4.1"L X 2.6"W

Deep-Dive with AI

Search across all available documentation for this part.

WM022I,BK

Active

Serpac

BOX ABS BLACK 4.1"L X 2.6"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WM022I,BK

Area (L x W)	10.7 in²
Area (L x W)	69 cm²
Color	Black
Container Type	Box
Design	Cover Included
Features	PCB Supports, Wall Mount, Mounting Flange
Height [z]	40.64 mm
Height [z]	1.6 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	104.14 mm
Size / Dimension [x]	4.1 "
Size / Dimension [y]	2.6 "
Size / Dimension [y]	66.04 mm
Thickness	2.54 mm
Thickness	0.1 in
Weight	70.31 g
Weight	0.155 lb

WM022 Series

Part	Features	Weight	Weight	Height [z]	Height [z]	Container Type	Material Flammability Rating	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Thickness	Thickness	Material	Design	Color	Area (L x W)	Area (L x W)	Ratings
Serpac WM022RI,AL	Front Access Mounting Flange PCB Supports Wall Mount	70.31 g	0.155 lb	40.64 mm	1.6 in	Box	UL94 HB	2.6 "	66.04 mm	104.14 mm	4.1 "	2.54 mm	0.1 in	Plastic ABS	Cover Included	Almond	10.7 in²	69 cm²	IP40 NEMA 1
Serpac WM022I,BK	Mounting Flange PCB Supports Wall Mount	70.31 g	0.155 lb	40.64 mm	1.6 in	Box	UL94 HB	2.6 "	66.04 mm	104.14 mm	4.1 "	2.54 mm	0.1 in	Plastic ABS	Cover Included	Black	10.7 in²	69 cm²	IP40 NEMA 1
Serpac WM022RI,BK	Front Access Mounting Flange PCB Supports Wall Mount	70.31 g	0.155 lb	40.64 mm	1.6 in	Box	UL94 HB	2.6 "	66.04 mm	104.14 mm	4.1 "	2.54 mm	0.1 in	Plastic ABS	Cover Included	Black	10.7 in²	69 cm²	IP40 NEMA 1
Serpac WM022I,GY	Mounting Flange PCB Supports Wall Mount	70.31 g	0.155 lb	40.64 mm	1.6 in	Box	UL94 HB	2.6 "	66.04 mm	104.14 mm	4.1 "	2.54 mm	0.1 in	Plastic ABS	Cover Included	Gray	10.7 in²	69 cm²	IP40 NEMA 1
Serpac WM022R,GY	Front Access Mounting Flange PCB Supports Wall Mount	70.31 g	0.155 lb	40.64 mm	1.6 in	Box	UL94 HB	2.6 "	66.04 mm	104.14 mm	4.1 "	2.54 mm	0.1 in	Plastic ABS	Cover Included	Gray	10.7 in²	69 cm²	IP40 NEMA 1
Serpac WM022,BK	Mounting Flange PCB Supports Wall Mount	70.31 g	0.155 lb	40.64 mm	1.6 in	Box	UL94 HB	2.6 "	66.04 mm	104.14 mm	4.1 "	2.54 mm	0.1 in	Plastic ABS	Cover Included	Black	10.7 in²	69 cm²	IP40 NEMA 1
Serpac WM022RI,GY	Front Access Mounting Flange PCB Supports Wall Mount	70.31 g	0.155 lb	40.64 mm	1.6 in	Box	UL94 HB	2.6 "	66.04 mm	104.14 mm	4.1 "	2.54 mm	0.1 in	Plastic ABS	Cover Included	Gray	10.7 in²	69 cm²	IP40 NEMA 1
Serpac WM022,AL	Mounting Flange PCB Supports Wall Mount	70.31 g	0.155 lb	40.64 mm	1.6 in	Box	UL94 HB	2.6 "	66.04 mm	104.14 mm	4.1 "	2.54 mm	0.1 in	Plastic ABS	Cover Included	Almond	10.7 in²	69 cm²	IP40 NEMA 1
Serpac WM022R,AL	Front Access Mounting Flange PCB Supports Wall Mount	70.31 g	0.155 lb	40.64 mm	1.6 in	Box	UL94 HB	2.6 "	66.04 mm	104.14 mm	4.1 "	2.54 mm	0.1 in	Plastic ABS	Cover Included	Almond	10.7 in²	69 cm²	IP40 NEMA 1
Serpac WM022,GY	Mounting Flange PCB Supports Wall Mount	70.31 g	0.155 lb	40.64 mm	1.6 in	Box	UL94 HB	2.6 "	66.04 mm	104.14 mm	4.1 "	2.54 mm	0.1 in	Plastic ABS	Cover Included	Gray	10.7 in²	69 cm²	IP40 NEMA 1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.50

Description

General part information

WM022 Series

Box Plastic, ABS Black Cover Included 4.100" L x 2.600" W (104.14mm x 66.04mm) X 1.600" (40.64mm)

Documents

Technical documentation and resources

No documents available
