Description
General part information

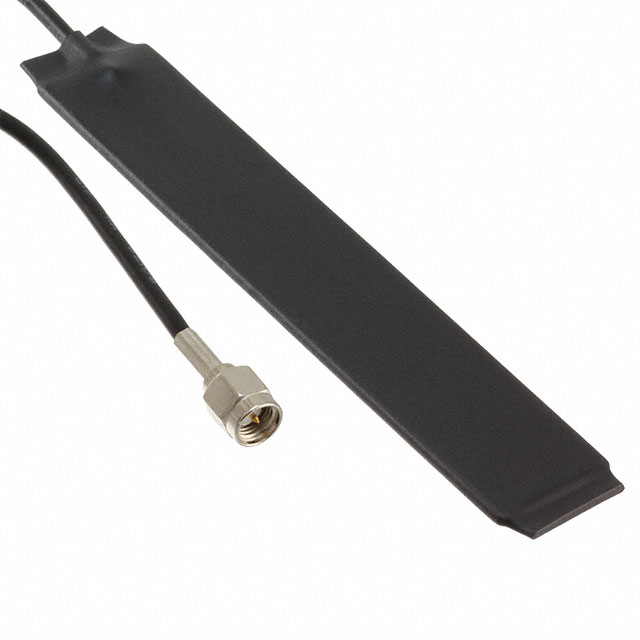

ALPHA8/3M/SMAM/S/S/1
RF ANTENNA GPRS, GSM, UMTS Flat Bar SMA Male Adhesive
Technical Specifications
Parameters and characteristics for this part
| Specification | ALPHA8/3M/SMAM/S/S/1 |
|---|---|
| Antenna Type | Flat Bar |
| Applications | GSM, GPRS, UMTS |
| Frequency (Center/Band) | 900MHz, 2.1GHz, 868MHz, 1.9GHz, 1.8GHz, 850MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz, 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz, 1 GHz |
| Gain | 2 dBi |
| Height (Max) | 0.118 in |
| Ingress Protection | IP66 |
| Mounting Type | Adhesive |
| Number of Bands | 6 |
| RF Family/Standard | Cellular |
| Termination Type | SMA Male |
| VSWR | 2 |
