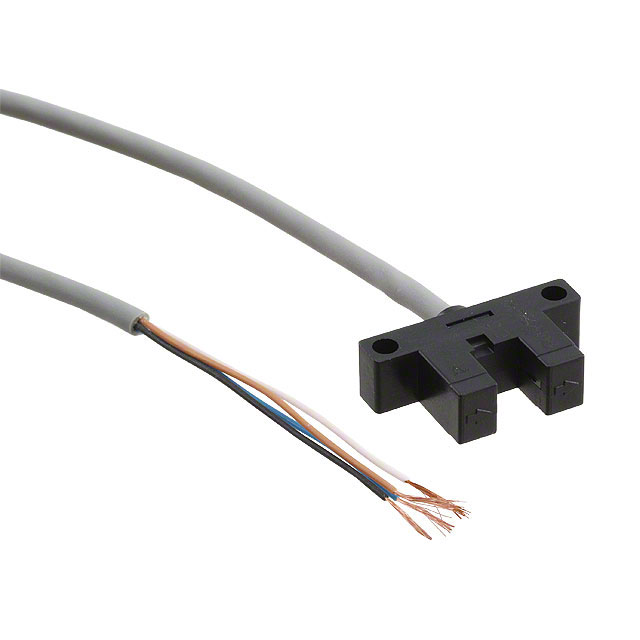

PM-K24-R
ObsoletePanasonic Industrial Automation Sales
SENSOR OPT SLOT NPN MODULE
PM-K24-R
ObsoletePanasonic Industrial Automation Sales
SENSOR OPT SLOT NPN MODULE
Description
General part information
PM-K24-R
Optical Sensor Through-Beam 0.197" (5mm) NPN - Dark-ON/Light-ON - Selectable Module, Wire Leads, Slot Type
Technical Specifications
Parameters and characteristics for this part
| Specification | PM-K24-R |
|---|---|
| Current - Collector (Ic) (Max) | 0.015 A |
| Current - DC Forward (If) (Max) | 50 mA |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | Light-ON - Selectable, NPN - Dark-ON |
| Package / Case | Module, Wire Leads, Slot Type |
| Response Time | 20 µs |
| Sensing Distance | 0.197 " |
| Sensing Method | Through-Beam |
| Type | Unamplified |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
