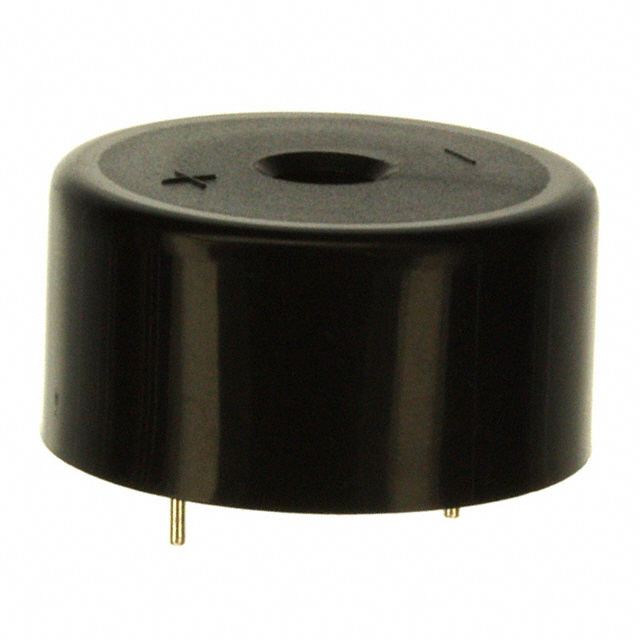

CEP-2272A
ActiveSame Sky (Formerly CUI Devices)
BUZZER PIEZO 12V 31.30MM TH
CEP-2272A
ActiveSame Sky (Formerly CUI Devices)
BUZZER PIEZO 12V 31.30MM TH
Description
General part information
CEP-2272A
Buzzers Indicator, Internally Driven Piezo 12 V 10mA 3.5kHz 93dB @ 12V, 30cm Through Hole PC Pins
Technical Specifications
Parameters and characteristics for this part
| Specification | CEP-2272A |
|---|---|
| Current - Supply | 10 mA |
| Driver Circuitry | Indicator, Internally Driven |
| Frequency | 3.5 kHz |
| Height - Seated (Max) | 16.51 mm |
| Input Type | DC |
| Mounting Type | Through Hole |
| Operating Mode | Single Tone |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Port Location | Top |
| Size / Dimension Diameter | 1.232 in |
| Sound Pressure Level (SPL) | 93 dB |
| Technology | Piezo |
| Termination | PC Pins |
| Voltage - Rated | 12 VAC |
| Voltage Range (Max) | 20 V |
| Voltage Range (Min) | 3 V |
