6600380-3
ActiveTE Connectivity AMP Connectors

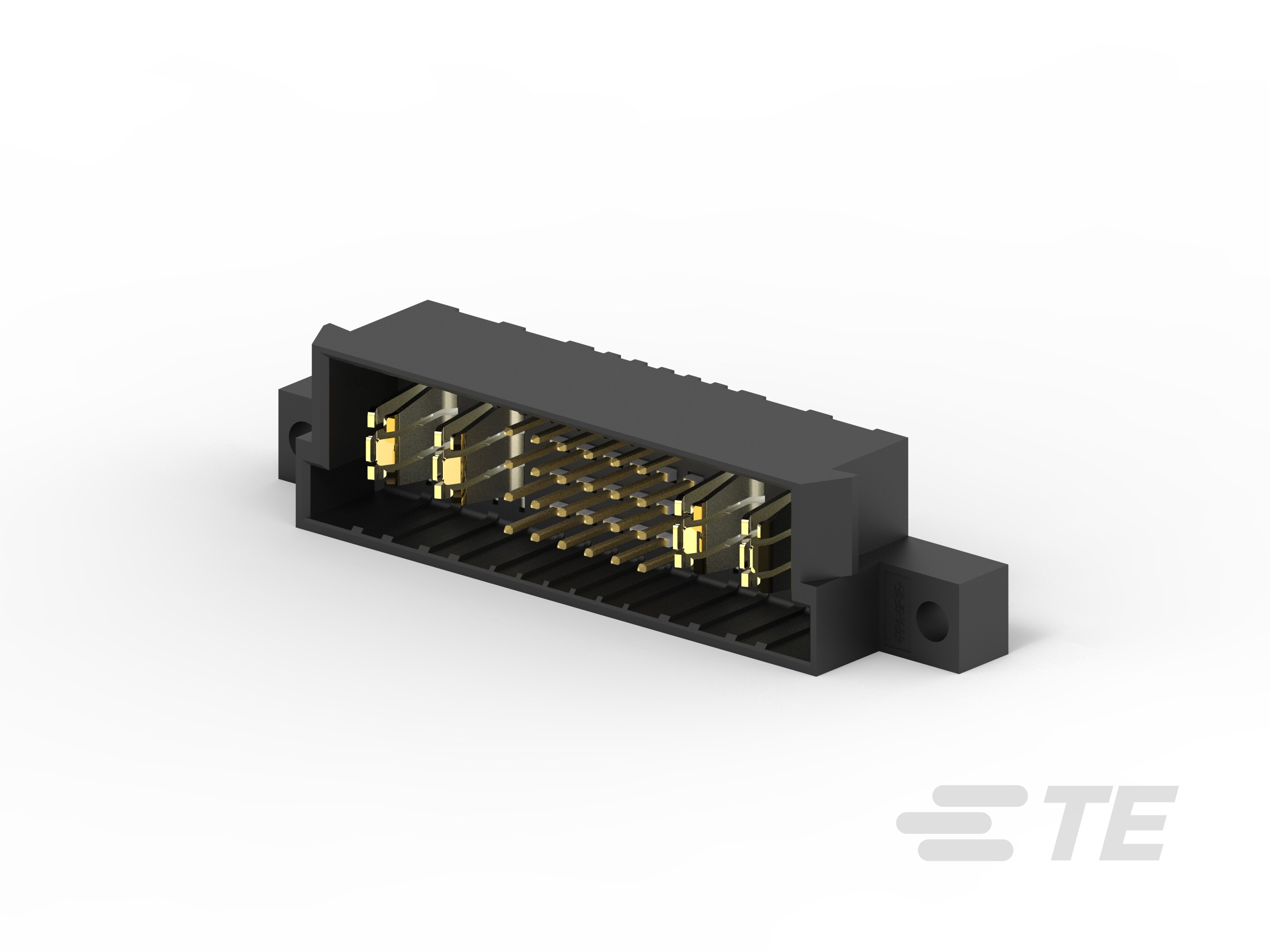

CONN HEADER MULTI-BEAM 28POS PCB
6600380-3
ActiveTE Connectivity AMP Connectors
CONN HEADER MULTI-BEAM 28POS PCB
Description
General part information
6600380-3
PCB Mount Header, Vertical, Board-to-Board, 28 Position, 2.54 mm / 6.35 mm [.1 in / .25 in] Centerline, Fully Shrouded, Gold (Au)
Technical Specifications
Parameters and characteristics for this part
| Specification | 6600380-3 |
|---|---|
| Color | Black |
| Connector Style | Multi-Beam |
| Connector Type | Blades, Male Pins, Header |
| Features | Board Lock |
| Mounting Type | Through Hole |
| Number of Positions | 28 |
| Number of Positions Loaded | All |
| Number of Rows | 4 |
| Pitch | 0.1 in |
| Power Contacts (Typical) | 4 |
| Signal Contacts (Typical) | 24 |
| Termination | Press-Fit |
