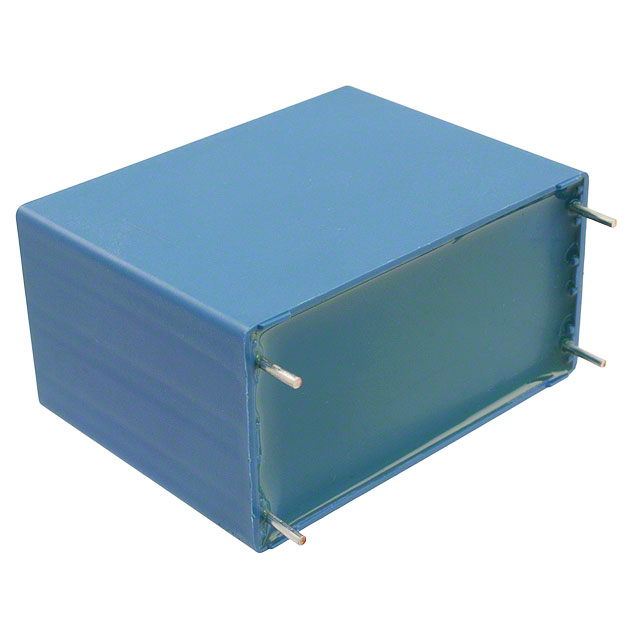

B32798G8306J
ObsoleteEPCOS - TDK Electronics
CAP FILM 30UF 5% 875VDC RADIAL
B32798G8306J
ObsoleteEPCOS - TDK Electronics
CAP FILM 30UF 5% 875VDC RADIAL
Description
General part information
B32798G8306J
30 µF Film Capacitor 350V 875V Polypropylene (PP), Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | B32798G8306J |
|---|---|
| Applications | EMI, RFI Suppression, DC Link, DC Filtering |
| Capacitance | 30 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 4 mOhm |
| Height - Seated (Max) | 1.969 in |
| Lead Spacing | 2.067 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial |
| Size / Dimension Length | 2.264 in |
| Size / Dimension Width | 1.378 in |
| Termination | PC Pins |
| Tolerance | 5 % |
| Voltage Rating - AC | 350 VAC |
| Voltage Rating - DC | 875 V |
