61769-1
ActiveTE Connectivity AMP Connectors
CONN SPLICE 1200-2600 CMA CRIMP
61769-1
ActiveTE Connectivity AMP Connectors
CONN SPLICE 1200-2600 CMA CRIMP
Description
General part information
61769-1

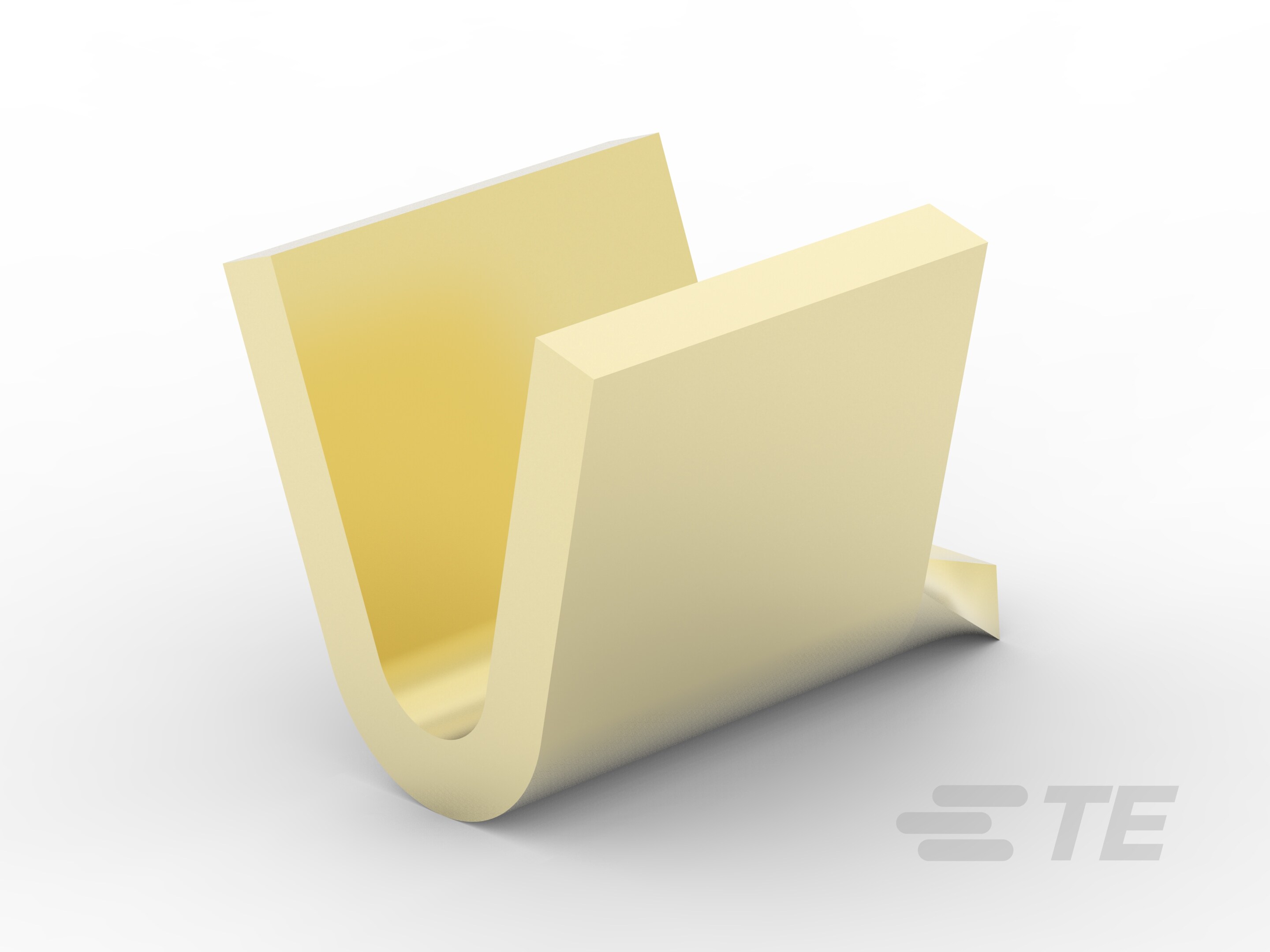

Pigtail Splice / Thru Splice, Serrated, 1200 – 2600 CMA, Brass, 2 Serration, 3.05 mm [.12 in] Length, Reel, Open Barrel, Solid / Stranded Wire, SPLICE
Technical Specifications
Parameters and characteristics for this part
| Specification | 61769-1 |
|---|---|
| Features | Ridged |
| Insulation | Non-Insulated |
| Number of Wire Entries | Varies by Wire Size |
| Terminal Type | Open Band, Crimpband |
| Termination | Crimp |
| Wire Gauge (CMA) (Max) | 2600 CMA |
| Wire Gauge (CMA) (Min) | 1200 CMA |
