050R13-51B

Active

Parlex USA LLC

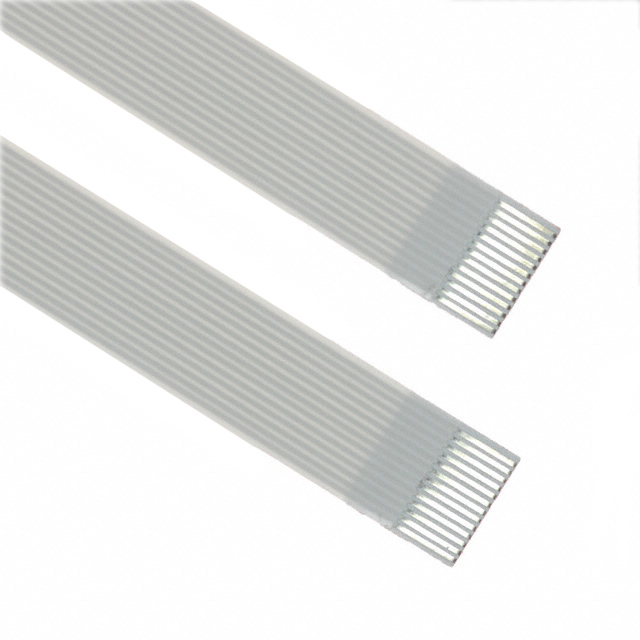

CABLE FFC/FPC 13POS 0.5MM 2"

Search across all available documentation for this part.

Active

Parlex USA LLC

CABLE FFC/FPC 13POS 0.5MM 2"

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

13 Position FFC, FPC Cable 0.020" (0.50mm) 2.000" (50.80mm)

Technical documentation and resources

Specification	050R13-51B	050R13 Series

Cable Type	FPC, FFC	FPC, FFC
Length	50.8 mm	50.8 - 127 mm
Length	2 in	2 - 5 in
Length	-	5.984 in
Length	-	152 mm
Length - Exposed Ends [x]	0.14 in	0.14 in
Length - Exposed Ends [x]	3.56 mm	3.56 mm
Number of Conductors	13	13
Pitch [x]	0.5 mm	0.5 mm
Pitch [x]	0.02 in	0.02 in
Termination Style	Backers on Both Sides, Top on Both Sides	Backers on Both Sides, Top on Both Sides

Part	Termination Style	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Pitch [x]	Pitch [x]	Number of Conductors	Length	Length	Cable Type	Length [x]	Length [x]
Parlex USA LLC 050R13-102B	Backers on Both Sides, Top on Both Sides	0.14 in	3.56 mm	0.5 mm	0.02 in	13	4 in	101.6 mm	FFC, FPC
Parlex USA LLC 050R13-51B	Backers on Both Sides, Top on Both Sides	0.14 in	3.56 mm	0.5 mm	0.02 in	13	2 in	50.8 mm	FFC, FPC
Parlex USA LLC 050R13-127B	Backers on Both Sides, Top on Both Sides	0.14 in	3.56 mm	0.5 mm	0.02 in	13	5 in	127 mm	FFC, FPC
Parlex USA LLC 050R13-152B	Backers on Both Sides, Top on Both Sides	0.14 in	3.56 mm	0.5 mm	0.02 in	13			FFC, FPC	5.984 in	152 mm
Parlex USA LLC 050R13-76B	Backers on Both Sides, Top on Both Sides	0.14 in	3.56 mm	0.5 mm	0.02 in	13	3 in	76.2 mm	FFC, FPC
