050AT1502HLF
ActiveGowanda Electronics

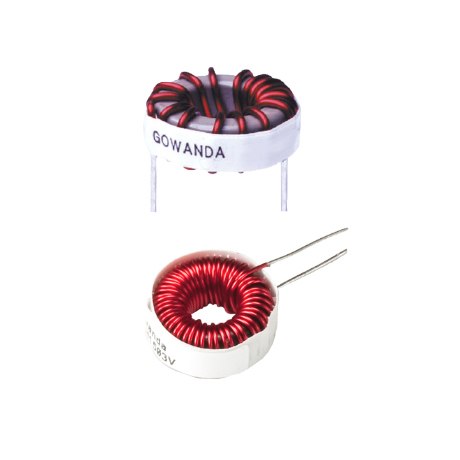

HORIZONTAL TOROIDAL INDUCTOR
050AT1502HLF
ActiveGowanda Electronics
HORIZONTAL TOROIDAL INDUCTOR
Description
General part information
050AT1502HLF
15 µH Shielded Toroidal Inductor 6.7 A 12mOhm Max Radial, Horizontal Cylinder (Open)
Technical Specifications
Parameters and characteristics for this part
| Specification | 050AT1502HLF |
|---|---|
| Current Rating | 6.7 A |
| DC Resistance (DCR) (Max) | 12 mOhm |
| Frequency - Self Resonant | 30 MHz |
| Height - Seated (Max) | 0.3 in |
| Inductance | 15 µH |
| Inductance Frequency - Test | 1 kHz |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial, Horizontal Cylinder (Open) |
| Package Name | Radial |
| Shielding | Shielded |
| Size / Dimension Diameter | 0.625 in |
| Tolerance | 10 % |
| Type | Toroidal |
