SW33 NA008

Active

ALPHA WIRE

SW33 NATURAL 25 FT ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

ALPHA WIRE

SW33 NATURAL 25 FT ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	SW33 NA008

Color	Natural
Diameter - Inside, Non-Expanded [diameter]	11.18 mm
Diameter - Inside, Non-Expanded [diameter]	0.44 in
Diameter - Outside, Non-Expanded [diameter]	0.5 in
Diameter - Outside, Non-Expanded [diameter]	12.7 mm
Environment Protection	Weather Resistant
Features	Self Extinguishing
Length [x]	25 ft
Length [x]	7.62 m
Material	Polytetrafluoroethylene (PTFE)
Material Flammability Rating	UL VW-1
Operating Temperature [Max]	260 ░C
Operating Temperature [Min]	-268 °C
Type	Spiral Wrap
Type Attributes	Harness
Wall Thickness [custom]	0.03 in
Wall Thickness [custom]	0.76 mm

SW33 NATURAL 25 FT ROHS COMPLIANT: YES

Part	Material	Color	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Features	Length [x]	Length [x]	Material Flammability Rating	Type	Environment Protection	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Type Attributes	Wall Thickness [custom]	Wall Thickness [custom]	Operating Temperature [Max]	Operating Temperature [Min]
ALPHA WIRE SW33 NA008	Polytetrafluoroethylene (PTFE)	Natural	11.18 mm	0.44 in	Self Extinguishing	25 ft	7.62 m	UL VW-1	Spiral Wrap	Weather Resistant	0.5 in	12.7 mm	Harness	0.03 in	0.76 mm	260 ░C	-268 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

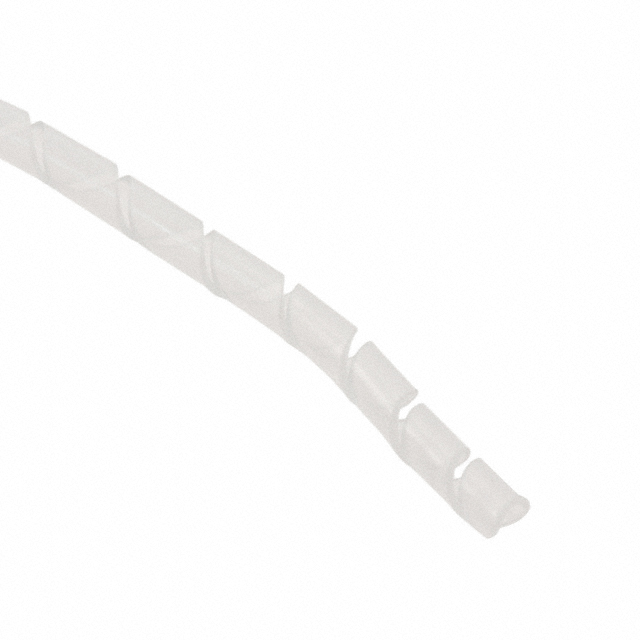

Spiral Wrap 0.500" (12.70mm) X 25.00' (7.62m) Natural
