A3KM1CSP12VDC1.6R

Active

CIT Relay and Switch

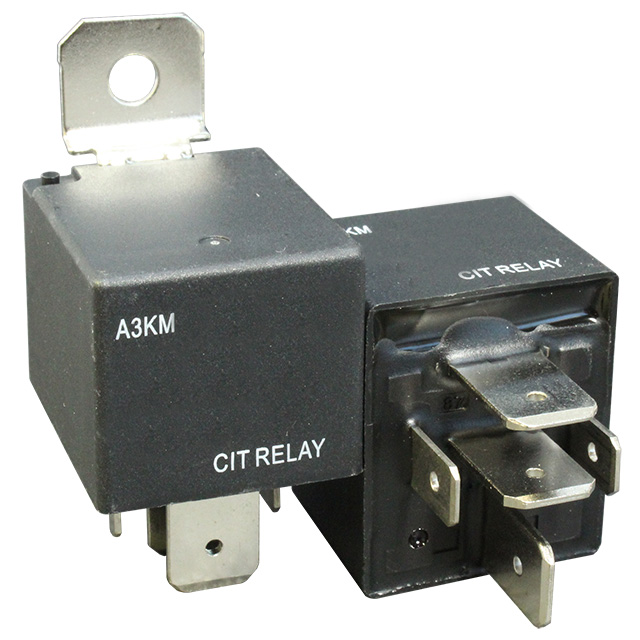

RELAY AUTOMOTIVE SPDT 150A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A3KM1CSP12VDC1.6R

Active

CIT Relay and Switch

RELAY AUTOMOTIVE SPDT 150A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A3KM1CSP12VDC1.6R	A3KM1 Series

Coil Current	133.3 mA	66.7 - 133.3 mA
Coil Power	1.6 W	1.6 W
Coil Resistance	90 Ohms	90 - 360 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	12 VDC	12 - 24 VDC
Contact Form	SPDT (1 Form C)	SPST-NO (1 Form A), SPDT (1 Form C)
Contact Material	Silver Tin Oxide (AgSnO)	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	80 A	80 A
Features	Sealed - Fully, Magnetic Blowout, Resistor	Sealed - Fully, Magnetic Blowout, Resistor, Diode
Mounting Type	Chassis Mount	Chassis Mount
Must Operate Voltage	7.8 VDC	7.8 VDC
Must Release Voltage	1.2 VDC	1.2 - 2.4 VDC
Operate Time	15 ms	15 ms
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Release Time	15 ms	15 ms
Switching Voltage [Max]	145 VDC	145 VDC
Termination Style	PC Pin	Quick Connect - Multiple Sizes, PC Pin

A3KM1 Series

RELAY AUTOMOTIVE SPST 150A 24V

Part	Coil Voltage	Termination Style	Features	Mounting Type	Coil Type	Contact Form	Contact Material	Contact Rating (Current)	Release Time	Operate Time	Coil Resistance	Must Release Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Switching Voltage [Max]	Coil Power	Coil Current	Must Operate Voltage
CIT Relay and Switch A3KM1ASQ24VDC1.6R	24 VDC	Quick Connect - Multiple Sizes	Magnetic Blowout, Resistor, Sealed - Fully	Chassis Mount	Non Latching	SPST-NO (1 Form A)	Silver Tin Oxide (AgSnO)	80 A	15 ms	15 ms	360 Ohms	2.4 VDC	125 °C	-40 °C	145 VDC	1.6 W	66.7 mA
CIT Relay and Switch A3KM1ASQ24VDC1.6D	24 VDC	Quick Connect - Multiple Sizes		Chassis Mount	Non Latching	SPST-NO (1 Form A)	Silver Tin Oxide (AgSnO)	80 A	15 ms	15 ms	360 Ohms	2.4 VDC	125 °C	-40 °C	145 VDC	1.6 W	66.7 mA
CIT Relay and Switch A3KM1CSP12VDC1.6D	12 VDC	PC Pin		Chassis Mount	Non Latching	SPDT (1 Form C)	Silver Tin Oxide (AgSnO)	80 A	15 ms	15 ms	90 Ohms	1.2 VDC	125 °C	-40 °C	145 VDC	1.6 W	133.3 mA	7.8 VDC
CIT Relay and Switch A3KM1CCQ12VDC1.6	12 VDC	Quick Connect - Multiple Sizes	Magnetic Blowout	Chassis Mount	Non Latching	SPDT (1 Form C)	Silver Tin Oxide (AgSnO)	80 A	15 ms	15 ms	90 Ohms	1.2 VDC	125 °C	-40 °C	145 VDC	1.6 W	133.3 mA	7.8 VDC
CIT Relay and Switch A3KM1ASP12VDC1.6	12 VDC	PC Pin	Magnetic Blowout, Sealed - Fully	Chassis Mount	Non Latching	SPST-NO (1 Form A)	Silver Tin Oxide (AgSnO)	80 A	15 ms	15 ms	90 Ohms	1.2 VDC	125 °C	-40 °C	145 VDC	1.6 W	133.3 mA	7.8 VDC
CIT Relay and Switch A3KM1ASQ12VDC1.6R	12 VDC	Quick Connect - Multiple Sizes	Magnetic Blowout, Resistor, Sealed - Fully	Chassis Mount	Non Latching	SPST-NO (1 Form A)	Silver Tin Oxide (AgSnO)	80 A	15 ms	15 ms	90 Ohms	1.2 VDC	125 °C	-40 °C	145 VDC	1.6 W	133.3 mA	7.8 VDC
CIT Relay and Switch A3KM1ACQ12VDC1.6D	12 VDC	Quick Connect - Multiple Sizes	Diode, Magnetic Blowout	Chassis Mount	Non Latching	SPST-NO (1 Form A)	Silver Tin Oxide (AgSnO)	80 A	15 ms	15 ms	90 Ohms	1.2 VDC	125 °C	-40 °C	145 VDC	1.6 W	133.3 mA	7.8 VDC
CIT Relay and Switch A3KM1CSQ12VDC1.6	12 VDC	Quick Connect - Multiple Sizes	Magnetic Blowout, Sealed - Fully	Chassis Mount	Non Latching	SPDT (1 Form C)	Silver Tin Oxide (AgSnO)	80 A	15 ms	15 ms	90 Ohms	1.2 VDC	125 °C	-40 °C	145 VDC	1.6 W	133.3 mA	7.8 VDC
CIT Relay and Switch A3KM1ASQ24VDC1.6	24 VDC	Quick Connect - Multiple Sizes	Magnetic Blowout, Sealed - Fully	Chassis Mount	Non Latching	SPST-NO (1 Form A)	Silver Tin Oxide (AgSnO)	80 A	15 ms	15 ms	360 Ohms	2.4 VDC	125 °C	-40 °C	145 VDC	1.6 W	66.7 mA
CIT Relay and Switch A3KM1ASP24VDC1.6	24 VDC	PC Pin	Magnetic Blowout, Sealed - Fully	Chassis Mount	Non Latching	SPST-NO (1 Form A)	Silver Tin Oxide (AgSnO)	80 A	15 ms	15 ms	360 Ohms	2.4 VDC	125 °C	-40 °C	145 VDC	1.6 W	66.7 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	320	$ 6.40

Description

General part information

A3KM1 Series

RELAY AUTOMOTIVE SPDT 150A 12V
