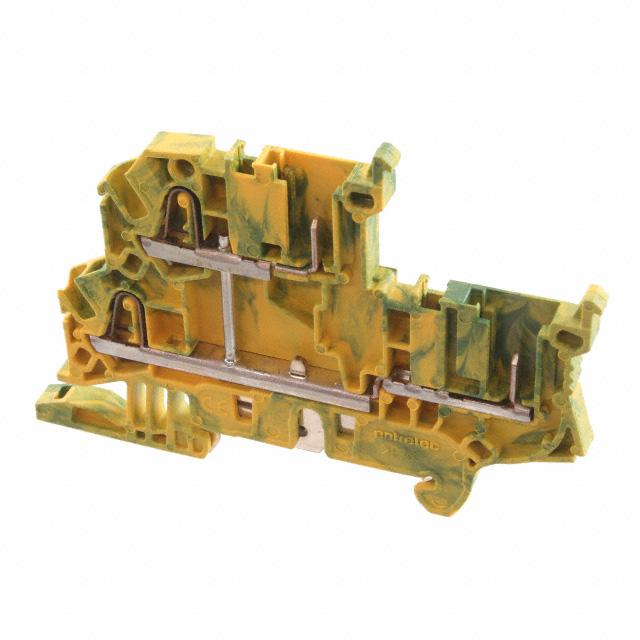

Specification	1SNK805250R0000

Height (Max)	2.72 in
Housing Color	Green, Yellow
Length	3.46 in
Mounting Type	DIN Rail
Number of Levels	2
Number of Positions	4
Stripping Length	11 mm
Terminal Width	5.2 mm
Termination Style	Push In, Plug Receptacles, Spring
Type	Plug Connection
Wire Gauge or Range - AWG (Max)	25.5 AWG
Wire Gauge or Range - AWG (Min)	12 AWG
Wire Gauge or Range - mm² (Maximum)	4 mm²
Wire Gauge or Range - mm² (Minimum)	0.2 mm²

1SNK Series

...

Part	For Use With/Related Products	Color	Number of Positions	Type	Legend	Pitch	Material Flammability Rating	Stripping Length	Material - Insulation	Disconnect Type	Wire Gauge or Range - AWG (Min)	Wire Gauge or Range - AWG (Max)	Terminal Width	Number of Levels	Current - IEC	Voltage - IEC	Current - UL	Wire Gauge or Range - mm² (Maximum)	Wire Gauge or Range - mm² (Minimum)	Voltage - UL	Termination Style	Legend Number	Operating Temperature (Max)	Operating Temperature (Min)	Positions Per Level	Mounting Type	Plug Wire Entry Angle	Wire Strip Length	Ingress Protection	Insulation Height	Housing Material
TE Connectivity AMP Connectors 1SNK900403R0000	SNK ZDP ZK ZP and ZS Series	Gray	1	Component Plug
TE Connectivity AMP Connectors 1SNK156011R0000	SNK Series	White		Label Snap In	A Letters	0.236 in
TE Connectivity AMP Connectors 1SNK705311R0000		Gray	2	Disconnect			UL94 V-0	11 mm	Nylon PA Polyamide	Open	12 AWG	25.5 AWG	5.2 mm	1	17 A	630 V	18 A	4 mm²	0.2 mm²	300 V	Push In Spring
TE Connectivity AMP Connectors 1SNK506260R0000		Yellow	4	Feed Through			UL94 V-0	10 mm	Nylon PA Polyamide		10 AWG	24 AWG	6 mm	2	40 A	800 V	30 A	6 mm²	0.2 mm²	300 V	Screw
TE Connectivity AMP Connectors 1SNK157041R0000	SNK Series	White		Label Snap In	Numbers	0.236 in																4
TE Connectivity AMP Connectors 1SNK156122R0000	SNK Series	White		Label Snap In	L Letters	0.236 in
TE Connectivity AMP Connectors 1SNK160121R0000	SNK Series	White		Label Snap In	111 through 120 Numbers	0.315 in
TE Connectivity AMP Connectors 1SNK166191R0000	SNK Series	White		Label Snap In	Letters S	0.315 in
TE Connectivity AMP Connectors 1SNK806724R0000		Gray	11	Female Sockets Plug							10 AWG	25.5 AWG		1	30 A	1000 V	30 A	6 mm²	0.5 mm²	600 V	Screwless - Spring Cage Tension Clamp		110 °C	-55 °C	11	Free Hanging (In-Line)	180 °	12.5 mm	IP20	1.43 in	Nylon PA Polyamide
TE Connectivity AMP Connectors 1SNK506020R0000		Blue	2	Feed Through			UL94 V-0	10.5 mm	Nylon PA Polyamide		10 AWG	24 AWG	6 mm	1	41 A	1000 V	30 A	6 mm²	0.2 mm²	600 V	Screw
