Description
General part information
7414-5-8-11(12)

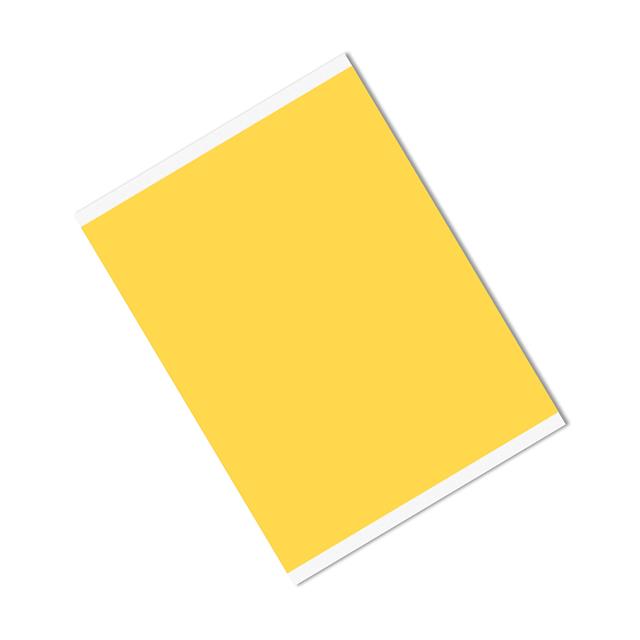

High Temp Polyimide Tape Acrylic Adhesive Amber 8.00" (203.20mm) X 11.00" (279.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 7414-5-8-11(12) |
|---|---|
| Adhesive | Acrylic |
| Backing | Polyimide Film |
| Carrier | Polyimide Film |
| Color | Amber |
| Length | 11 in |
| Shelf Life | 6 Months |
| Shelf Life Start | Date of Delivery |
| Storage/Refrigeration Temperature (Maximum) | 80 °F |
| Storage/Refrigeration Temperature (Minimum) | 60 °F |
| Tape Type | High Temp Polyimide |
| Thickness | 0.0018 in |
| Thickness - Adhesive | 0.0008 in |
| Thickness - Backing, Carrier | 0.001 in |
| Usage | Masking, High Temperature |
| Width | 8 in |
