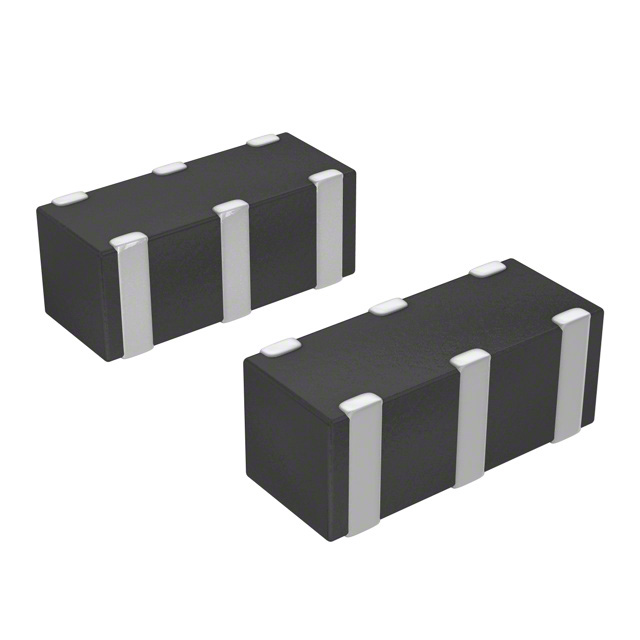

PRQC14.74CR5010X000
ObsoleteKYOCERA AVX
CERAMIC RES 14.7400MHZ 10PF SMD
PRQC14.74CR5010X000
ObsoleteKYOCERA AVX
CERAMIC RES 14.7400MHZ 10PF SMD
Description
General part information
PRQC14.74CR5010X000
14.74 MHz Ceramic Resonator Built in Capacitor 10 pF ±0.5% -40°C ~ 85°C Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | PRQC14.74CR5010X000 |
|---|---|
| Capacitance | 10 pF |
| Features | Built in Capacitor |
| Frequency | 14.74 MHz |
| Frequency Stability | 0.5 % |
| Frequency Tolerance | 0.5 % |
| Height | 0.039 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 3-SMD, Non-Standard |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.051 in |
| Type | Ceramic |
