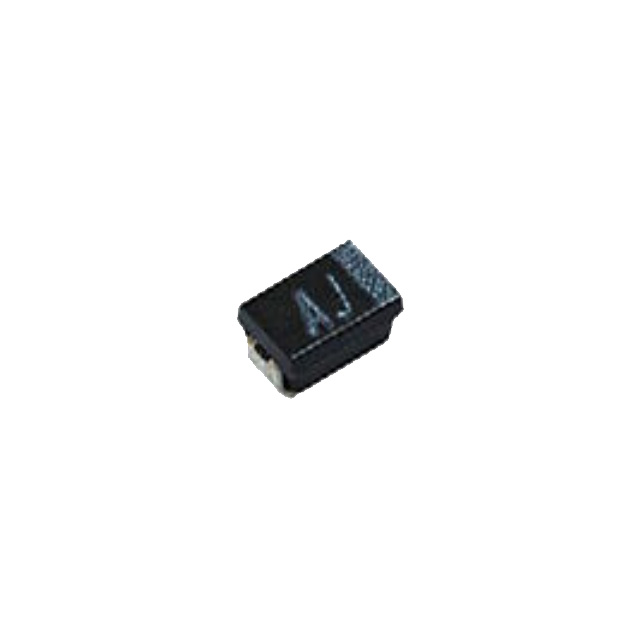

Specification	T55A107M2R5C0200

Capacitance	100 µF
ESR (Equivalent Series Resistance)	200 mOhm
Features	General Purpose
Height - Seated (Max)	0.071 in
Manufacturer Size Code	A
Mounting Type	Surface Mount
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Package / Case	1206 (3216 Metric)
Size / Dimension Length	0.126 in
Size / Dimension Width	0.063 in
Tolerance	20 %
Type	Molded
Voltage - Rated	2.5 V
