2461-001-X7V0-102AA
ActiveTusonix a Subsidiary of CTS Electronic Components

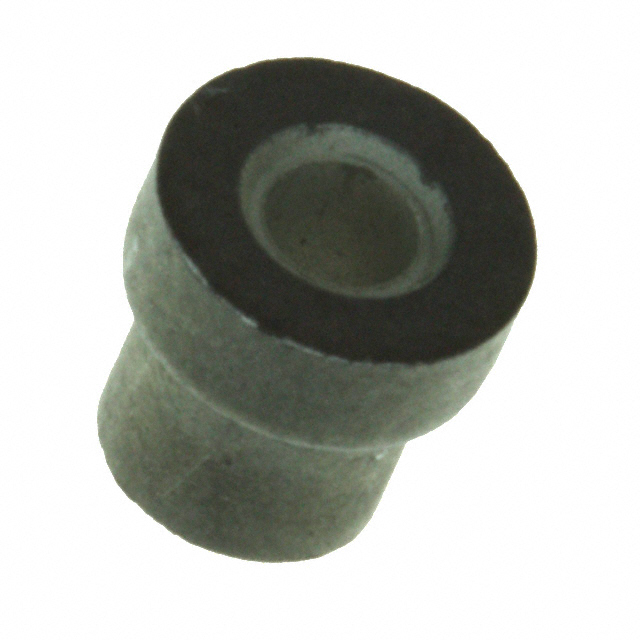

TUBULAR FEED-THRU CAPACITOR
2461-001-X7V0-102AA
ActiveTusonix a Subsidiary of CTS Electronic Components
TUBULAR FEED-THRU CAPACITOR
Description
General part information
2461-001-X7V0-102AA
1000 pF Feed Through Capacitor 100V 20 A Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | 2461-001-X7V0-102AA |
|---|---|
| Capacitance | 1000 pF |
| Current | 20 A |
| Insertion Loss | 20 dB |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Size / Dimension Diameter | 0.165 in |
| Size / Dimension Length | 0.165 in |
| Temperature Coefficient | X7V |
| Type | Feed Through |
| Voltage - Rated | 100 VAC/DC |
