BFC233868412
ActiveVishay Dale

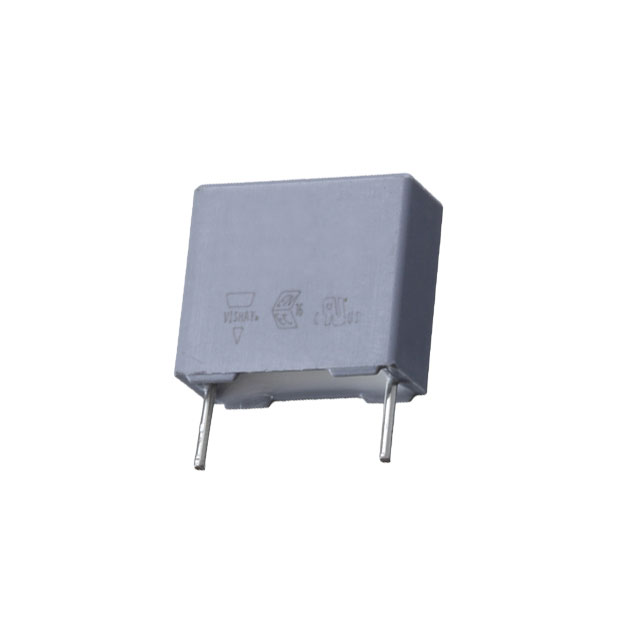

CAP FILM 1500PF 20% 1KVDC RADIAL
BFC233868412
ActiveVishay Dale
CAP FILM 1500PF 20% 1KVDC RADIAL
Description
General part information
BFC233868412
1500 pF Film Capacitor 300V 1000V (1kV) Polypropylene (PP), Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | BFC233868412 |
|---|---|
| Applications | EMI, Automotive, RFI Suppression |
| Capacitance | 1500 pF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Height - Seated (Max) | 0.394 in |
| Lead Spacing | 0.394 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Ratings | AEC-Q200, Y2 |
| Size / Dimension Length | 0.492 in |
| Size / Dimension Width | 0.157 in |
| Termination | PC Pins |
| Tolerance | 20 % |
| Voltage Rating - AC | 300 V |
| Voltage Rating - DC | 1 kV |
