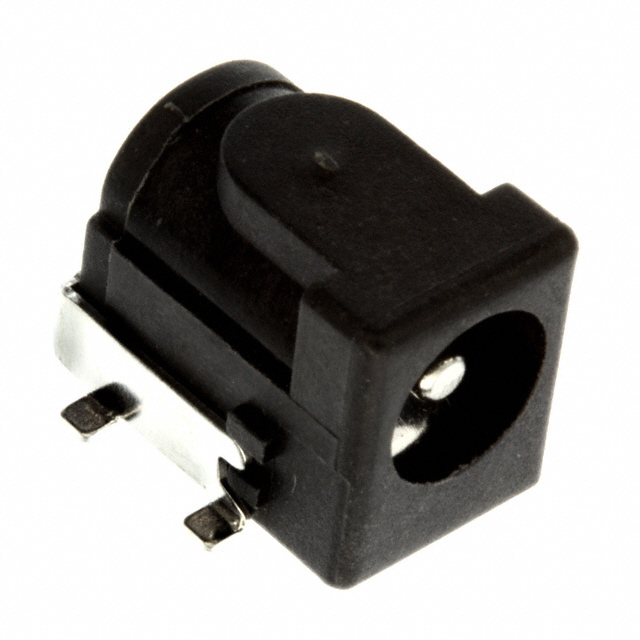

PJ-002A-SMT-1
ObsoleteSame Sky (Formerly CUI Devices)
CONN PWR JACK 2X5.5MM SOLDER
PJ-002A-SMT-1
ObsoleteSame Sky (Formerly CUI Devices)
CONN PWR JACK 2X5.5MM SOLDER
Description
General part information
PJ-002A-SMT-1
Power Barrel Connector Jack 2.10mm ID (0.083"), 5.50mm OD (0.217") Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | PJ-002A-SMT-1 |
|---|---|
| Actual Diameter (ID) | 0.079 in |
| Actual Diameter (OD) | 0.256 in |
| Body Color | Black |
| Connector Type | Jack |
| Contact Material | Copper Alloy |
| Contact Material - Plating | Silver |
| Current Rating | 2.5 A |
| Features | Board Guide |
| Gender | Male |
| Housing Material | Polyamide, Nylon 6T, PA6T |
| Industry Recognized Mating Diameter (ID) | 2.1 mm |
| Industry Recognized Mating Diameter (OD) | 5.5 mm |
| Internal Switch(s) | Single Switch, Normally Closed |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Conductors | 2 |
| Number of Contacts | 3 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage - Rated | 16 V |
