Specification	M85049/42-12DZ

Cable Exit Angle	180 °
Color	Black
Features	Clamp Screws, Strain Relief
For Use With/Related Products	MIL-DTL-83723 Series III, MIL-DTL-5015, MIL-DTL-26482 Series II
Material	Aluminum Alloy
Plating	Zinc Cobalt
Shielding	Unshielded
Type	Cable Clamp

M85049/42 Series

Part	Material	Shielding	Cable Exit Angle	Plating	Color	Type	Features	For Use With/Related Products	Shell Size - Insert	Shell Size - Insert
McGill Microwave Systems M85049/42-16DZ	Aluminum Alloy	Unshielded	180 °	Zinc Cobalt	Black	Cable Clamp	Clamp Screws Strain Relief
McGill Microwave Systems M85049/42-32DZ	Aluminum Alloy	Unshielded	180 °	Zinc Cobalt	Black	Cable Clamp	Clamp Screws Strain Relief	MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III
McGill Microwave Systems M85049/42-4DZ	Aluminum Alloy	Unshielded	180 °	Zinc Cobalt	Black	Cable Clamp	Clamp Screws Strain Relief
McGill Microwave Systems M85049/42-8DZ	Aluminum Alloy	Unshielded	180 °	Zinc Cobalt	Black	Cable Clamp	Clamp Screws Strain Relief	MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III
McGill Microwave Systems M85049/42-24DZ	Aluminum Alloy	Unshielded	180 °	Zinc Cobalt	Black	Cable Clamp	Clamp Screws Strain Relief
McGill Microwave Systems M85049/42-16DZ	Aluminum Alloy	Unshielded	180 °	Zinc Cobalt	Black	Cable Clamp	Clamp Screws Strain Relief	MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III
McGill Microwave Systems M85049/42-4DZ	Aluminum Alloy	Unshielded	180 °	Zinc Cobalt	Black	Cable Clamp	Clamp Screws Strain Relief	MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III
McGill Microwave Systems M85049/42-6DZ	Aluminum Alloy	Unshielded	180 °	Zinc Cobalt	Black	Cable Clamp	Clamp Screws Strain Relief

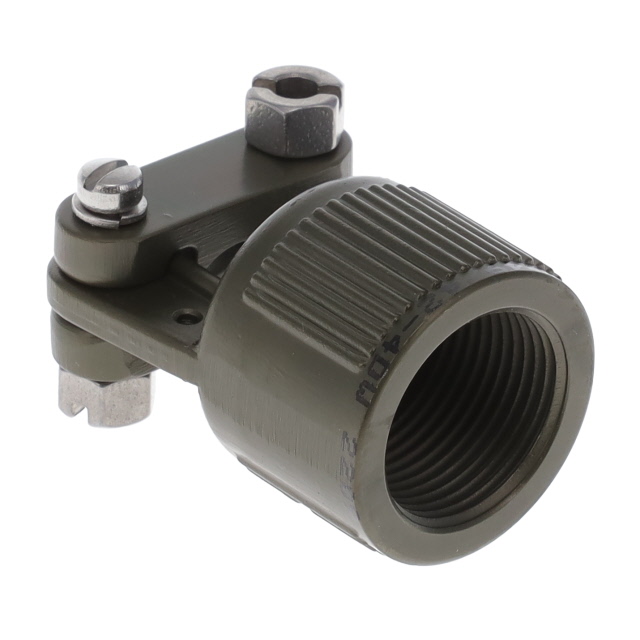

McGill Microwave Systems M85049/42-4DW	Aluminum Alloy	Unshielded	180 °	Cadmium	Olive Drab	Cable Clamp	Strain Relief	MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III	4	4
McGill Microwave Systems M85049/42-10DZ	Aluminum Alloy	Unshielded	180 °	Zinc Cobalt	Black	Cable Clamp	Clamp Screws Strain Relief

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

M85049/42-12DZ | Datasheet
