2498609-1
ActiveTE Connectivity AMP Connectors

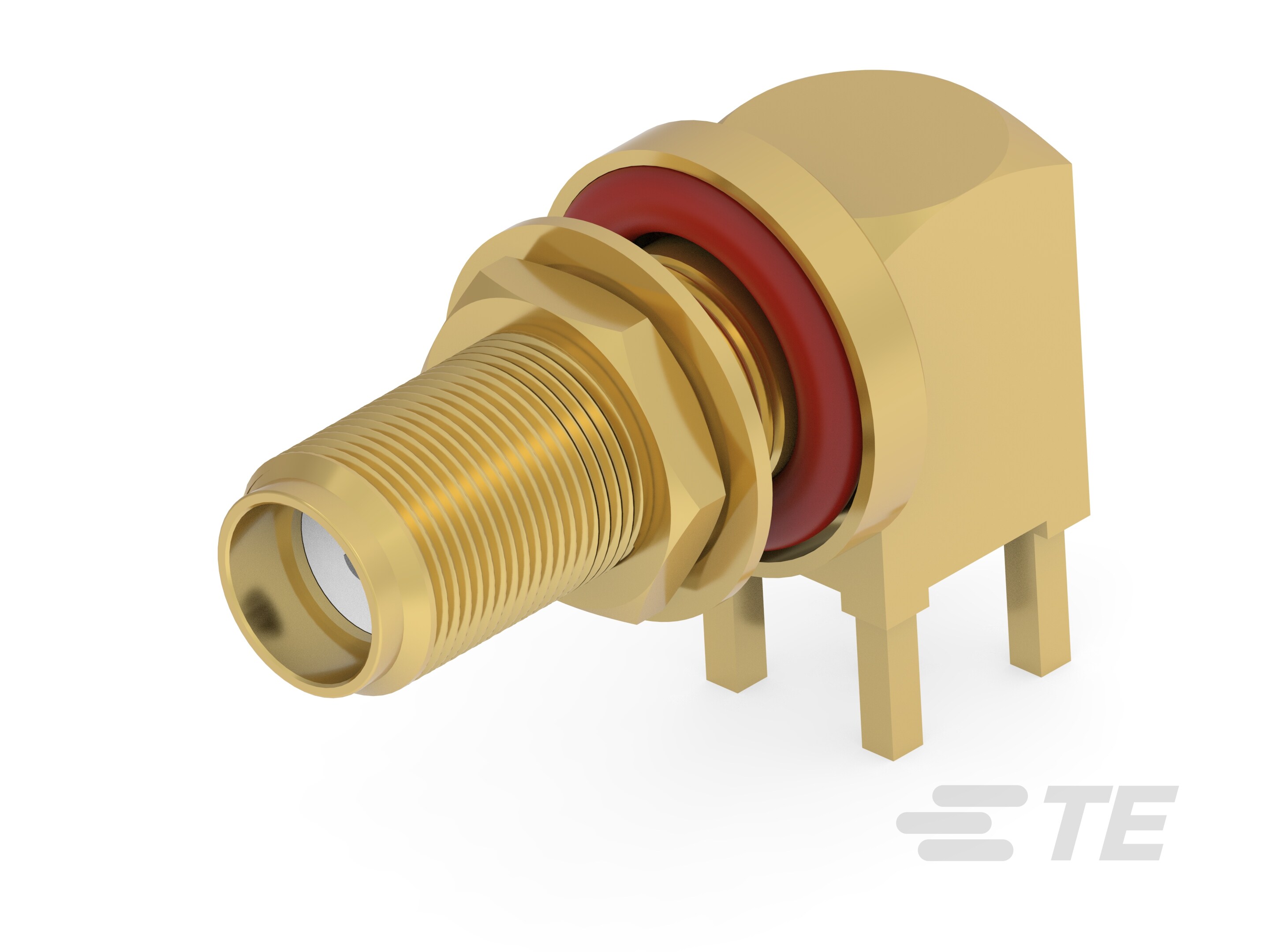

SMA JACK RA THRU HOLE BHD IP68 BRASS 6G
2498609-1
ActiveTE Connectivity AMP Connectors
SMA JACK RA THRU HOLE BHD IP68 BRASS 6G
Description
General part information
2498609-1
SMA Connector, Jack, 50 ohm, Threaded, 0 – 6 GHz, Cable-to-Board, 1 Position, Sealable, Printed Circuit Board, Panel Mount & Board Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 2498609-1 |
|---|---|
| Center Contact Material | Beryllium Copper |
| Connector Style | SMA |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Fastening Type | Threaded |
| Frequency - Max | 6000 MHz |
| Housing Color | Gold |
| Impedance | 50 Ohm |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Number of Ports | 1 |
| Shield Termination | Solder |
