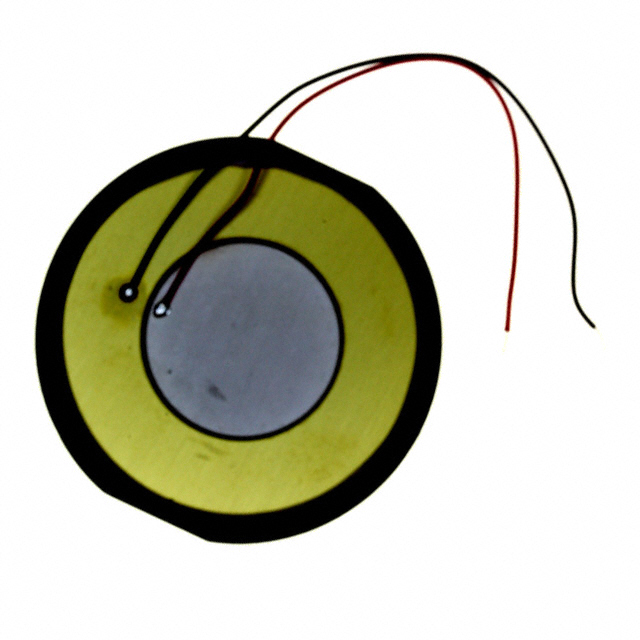

APS4812B-LW100-R
ActivePUI Audio, Inc.
BUZZER ELEMENT STD 1.2KHZ 50MM
APS4812B-LW100-R
ActivePUI Audio, Inc.
BUZZER ELEMENT STD 1.2KHZ 50MM
Description
General part information
APS4812B-LW100-R
1.2 kHz Standard Buzzer Element 30V p-p 1.969" Dia (50.00mm) 3.5 kOhms
Technical Specifications
Parameters and characteristics for this part
| Specification | APS4812B-LW100-R |
|---|---|
| Capacitance | 65000 pF |
| Frequency | 1.2 kHz |
| Impedance | 3.5 kOhms |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Size / Dimension Diameter | 1.969 in |
| Termination | Wire Leads |
| Type | Standard |
| Voltage - Input (Max) | 30 V p-p |
