MBA02040C1600FRP00
ActiveVishay Dale
MBA/SMA 0204-50 1% RP 160R
MBA02040C1600FRP00
ActiveVishay Dale
MBA/SMA 0204-50 1% RP 160R
Description
General part information
MBA02040C1600FRP00

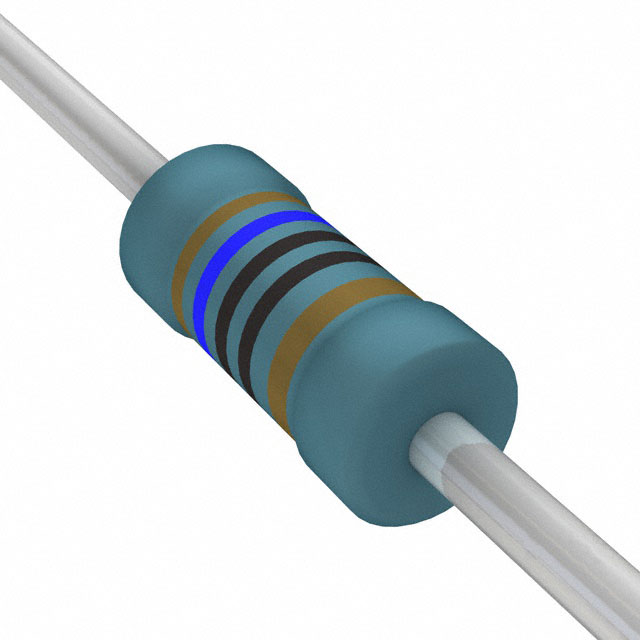

160 Ohms ±1% 0.4W Through Hole Resistor Axial Automotive AEC-Q200 Metal Film
Technical Specifications
Parameters and characteristics for this part
| Specification | MBA02040C1600FRP00 |
|---|---|
| Composition | Metal Film |
| Features | Automotive AEC-Q200 |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Power (Watts) | 0.4 W |
| Resistance | 160 Ohm |
| Size / Dimension Diameter | 0.063 in |
| Size / Dimension Length | 0.142 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
