Description

General part information

HP24510.A

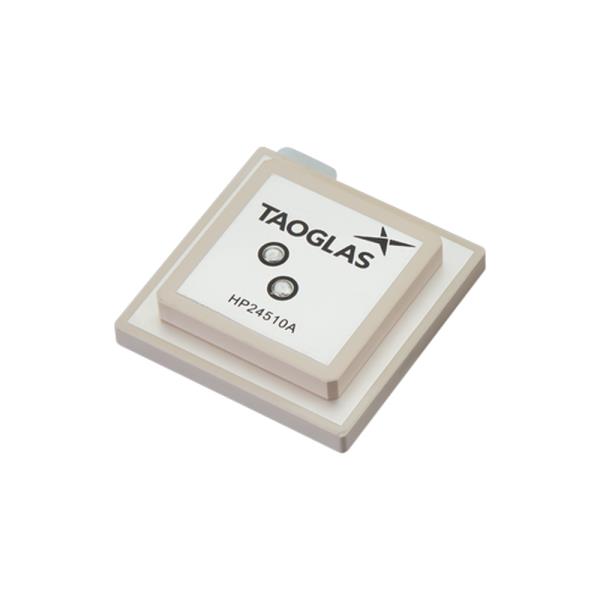

RF ANTENNA BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS Ceramic Patch Solder Surface Mount

Technical Specifications

Parameters and characteristics for this part

SpecificationHP24510.A
Antenna TypeCeramic Patch
ApplicationsGLONASS, SBAS, QZSS, GNSS, GPS, BEIDOU, Galileo, IRNSS
Frequency (Center/Band)1.542GHz, 1.227GHz, 1.245GHz, 1.601GHz, 1.575GHz, 1.561GHz
Frequency (Center/Band) - 11.227 GHz
Frequency (Center/Band) - 21.245 GHz
Frequency (Center/Band) - 31.542 GHz
Frequency (Center/Band) - 41.561 GHz
Frequency (Center/Band) - 51.575 GHz
Frequency (Center/Band) - 61.601 GHz
Frequency GroupUHF
Frequency Group Maximum (UHF)2 GHz
Frequency Group Minimum (UHF)1 GHz
Frequency Range (Band 1) Maximum1.239 GHz
Frequency Range (Band 1) Minimum1.215 GHz
Frequency Range (Band 2) Maximum1.254 GHz
Frequency Range (Band 2) Minimum1.237 GHz
Frequency Range (Band 3) Maximum1.559 GHz
Frequency Range (Band 3) Minimum1.525 GHz
Frequency Range (Band 4) Maximum1.563 GHz
Frequency Range (Band 4) Minimum1.559 GHz
Frequency Range (Band 5) Maximum1.587 GHz
Frequency Range (Band 5) Minimum1.563 GHz
Frequency Range (Band 6) Maximum1.61 GHz
Frequency Range (Band 6) Minimum1.593 GHz
Gain4.33 dBi, 4.5 dBi, 2.86 dBi, 3.05 dBi, 2.46 dBi, 4.48 dBi
Height (Max)0.394 in
Mounting TypeSurface Mount
Number of Bands6
RF Family/StandardNavigation
TerminationSolder
