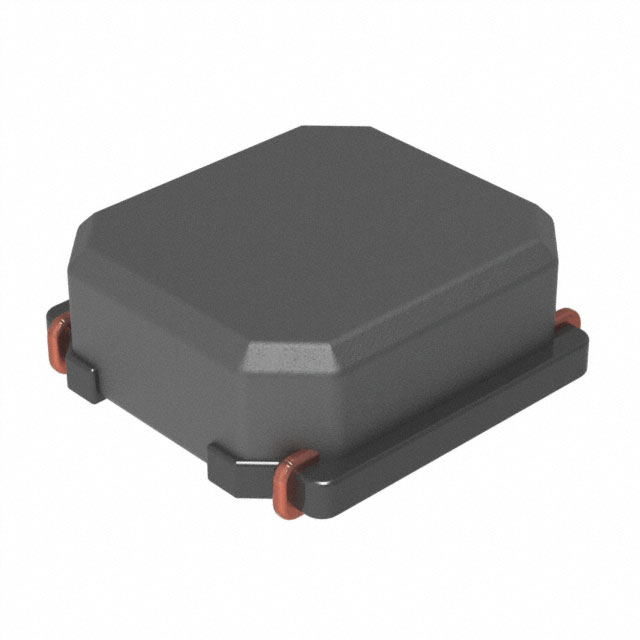

LMLP04B4M330CTAS
ActiveKYOCERA AVX
FIXED IND 33UH 490MA 530MOHM SMD
LMLP04B4M330CTAS
ActiveKYOCERA AVX
FIXED IND 33UH 490MA 530MOHM SMD
Description
General part information
LMLP04B4M330CTAS
33 µH Shielded Inductor 490 mA 530mOhm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | LMLP04B4M330CTAS |
|---|---|
| Current - Saturation (Isat) | 650 mA |
| Current Rating | 490 mA |
| DC Resistance (DCR) | 530 mOhm |
| Height - Seated (Max) | 0.071 in |
| Inductance | 33 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.157 in |
| Size / Dimension Width | 0.157 in |
| Tolerance | 20 % |
