936059-1

Active

TE Connectivity AMP Connectors

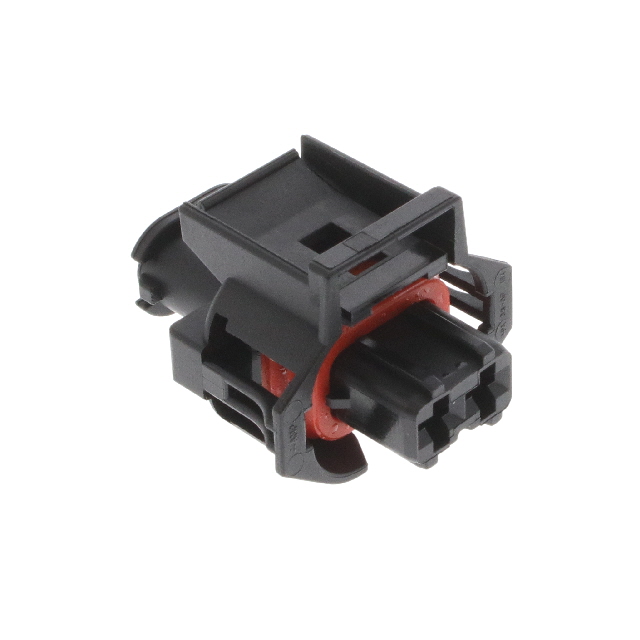

CONN PLUG HSG 2POS 2.8MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 2POS 2.8MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Rectangular Connectors - Housings Plug Black

Technical documentation and resources

No documents available

Specification	936059-1	936059 Series

Color	Black	Black
Connector Type	Plug	Plug
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Male Pin, Female Socket
Fastening Type	Latch Holder	Latch Holder
Features	-	Sealed
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled	Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	2	2
Number of Rows	1	1
Pitch	-	5 mm
Pitch	-	0.197 in

Part	Insulation Material	Color	Pitch [x]	Pitch [x]	Contact Type	Features	Number of Rows	Connector Type	Contact Termination	Number of Positions	Fastening Type	Mounting Type	Note
TE Connectivity AMP Connectors 1-936059-1	Polyamide (PA66), Nylon 6/6, Glass Filled	Black	5 mm	0.197 in	Male Pin	Sealed	1	Plug	Crimp	2	Latch Holder	Free Hanging (In-Line)
TE Connectivity AMP Connectors 936059-1	Polyamide (PA66), Nylon 6/6, Glass Filled	Black			Female Socket		1	Plug	Crimp	2	Latch Holder	Free Hanging (In-Line)	Contacts Not Included
