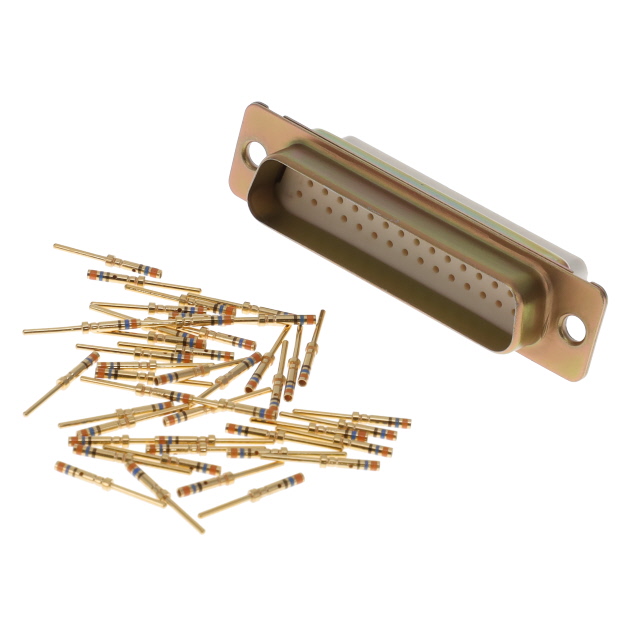

M24308/4-13F

Active

Amphenol Interconnect India

DSUB CONN,CRIMP, PLUG, CADMIUM

Search across all available documentation for this part.

Active

Amphenol Interconnect India

DSUB CONN,CRIMP, PLUG, CADMIUM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M24308/4-13F	M24308/4 Series

Color	Natural	Natural
Connector Style	High Density, D-Sub	High Density, D-Sub
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Contact Type	Signal	Signal
Current Rating (Amps)	5 A	5 - 7.5 A
Dielectric Material	Polyester, Glass Filled	Polyester, Glass Filled
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0	UL94 V-0
Number of Positions	44	15 - 104
Number of Rows	3	2 - 5
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Material, Finish	Yellow Cadmium Plated, Steel	Yellow Cadmium Plated, Steel, Yellow Chromate Plated Zinc
Shell Size, Connector Layout	-	1
Shell Size, Connector Layout	-	High Density
Shell Size, Connector Layout	-	6
Shell Size, Connector Layout	-	4 (DC, C)
Shell Size, Connector Layout [custom]	B, DB	DE, E, B, DB
Shell Size, Connector Layout [x]	3	3
Termination	Crimp	Crimp
Wire Gauge [Max]	28 AWG	26 - 28 AWG
Wire Gauge [Min]	22 AWG	20 - 22 AWG

DSUB CONN,CRIMP, PLUG, CADMIUM

Part	Contact Type	Dielectric Material	Contact Finish	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Current Rating (Amps)	Number of Rows	Contact Material	Shell Material, Finish	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge [Max]	Wire Gauge [Min]	Termination	Number of Positions	Connector Type	Color	Material Flammability Rating	Flange Feature	Connector Style	Shell Size, Connector Layout	Shell Size, Connector Layout	Shell Size, Connector Layout [x]
Amphenol Interconnect India M24308/4-11F	Signal	Polyester, Glass Filled	Gold	DE, E	1	High Density	5 A	3	Copper Alloy	Steel, Yellow Cadmium Plated	-55 °C	125 °C	28 AWG	22 AWG	Crimp	15	Male Pins, Plug	Natural	UL94 V-0	Housing/Shell (Unthreaded)	D-Sub, High Density
Amphenol Interconnect India M24308/4-16F	Signal	Polyester, Glass Filled	Gold				5 A	5	Copper Alloy	Steel, Yellow Cadmium Plated	-55 °C	125 °C	28 AWG	22 AWG	Crimp	104	Male Pins, Plug	Natural	UL94 V-0	Housing/Shell (Unthreaded)	D-Sub, High Density	6
Amphenol Interconnect India M24308/4-4Z	Signal	Polyester, Glass Filled	Gold				7.5 A	2	Copper Alloy	Steel, Yellow Chromate Plated Zinc	-55 °C	125 °C	26 AWG	20 AWG	Crimp	37	Male Pins, Plug	Natural	UL94 V-0	Housing/Shell (Unthreaded)	D-Sub		4 (DC, C)
Amphenol Interconnect India M24308/4-13F	Signal	Polyester, Glass Filled	Gold	B, DB			5 A	3	Copper Alloy	Steel, Yellow Cadmium Plated	-55 °C	125 °C	28 AWG	22 AWG	Crimp	44	Male Pins, Plug	Natural	UL94 V-0	Housing/Shell (Unthreaded)	D-Sub, High Density			3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

44 Position D-Sub, High Density Plug, Male Pins Connector
