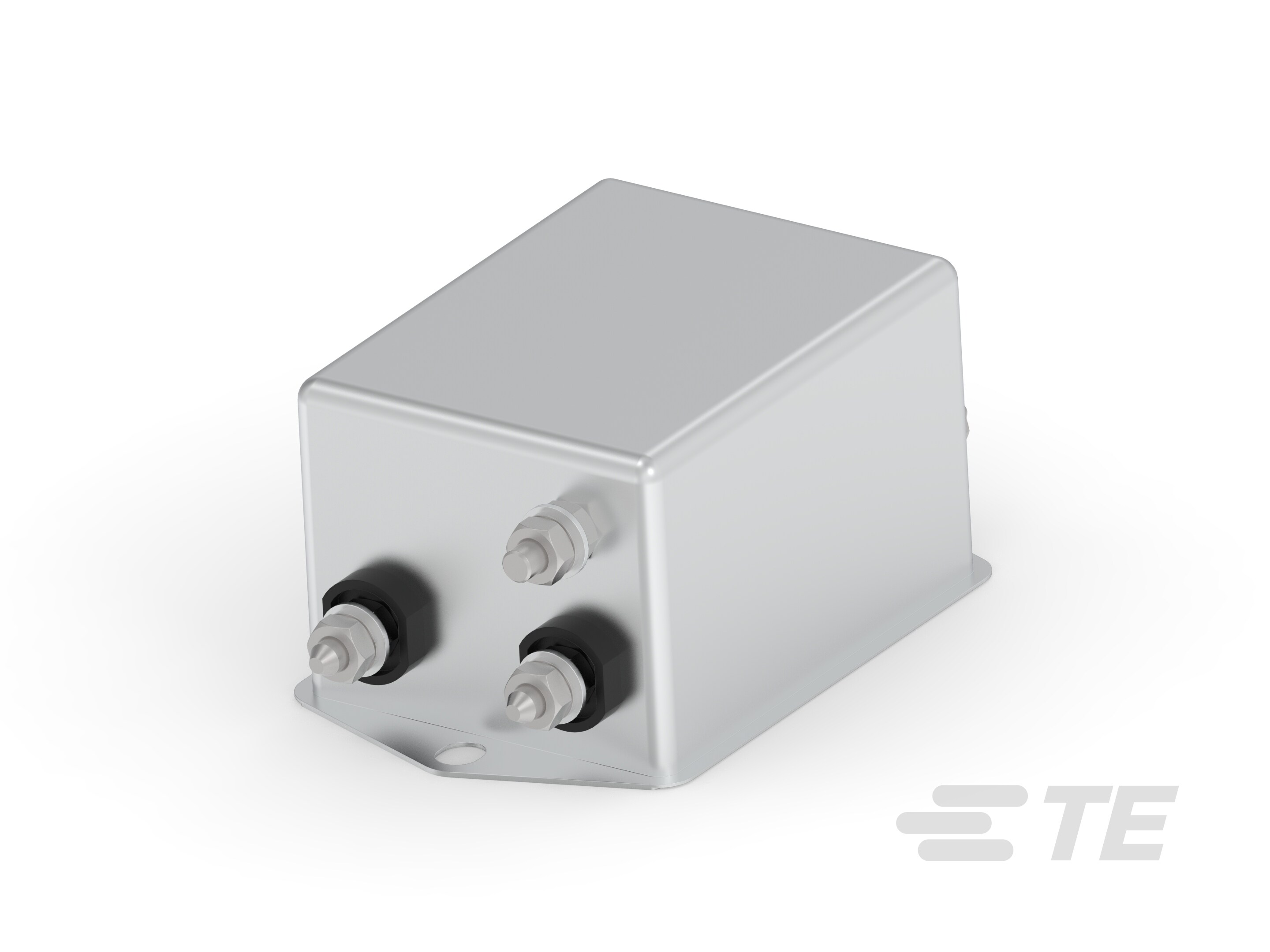

FN2060A-16-08-815789-SF

FN2060-10-08

Active
TE Connectivity AMP Connectors

POWER LINE FILTERS SINGLE PHASE CHASSIS MOUNT FILTER 250VAC, 10A, 2-STAGE, SCREW

Find alt
FN2060A-16-08-815789-SF

FN2060-10-08

Active
TE Connectivity AMP Connectors

POWER LINE FILTERS SINGLE PHASE CHASSIS MOUNT FILTER 250VAC, 10A, 2-STAGE, SCREW

Find alt

Description

General part information

Schaffner FN2060 Series

10 A Single Phase Filter, Threaded Stud Input, Threaded Stud Output, 250 VAC, Schaffner FN2060, Single Phase Filters

Technical Specifications

Parameters and characteristics for this part

SpecificationFN2060-10-08
ApplicationsGeneral Purpose
Approval AgencyUR, CE, ENEC, CSA
ConfigurationTwo Stage
Current10 A
Filter TypeSingle Phase
Frequency - Operating (Max)400 Hz
Frequency - Operating (Min)0 Hz
Inductance800 µH
Mounting TypeChassis Mount
Operating Temperature (Max)100 °C
Operating Temperature (Min)-25 °C
Termination StyleThreaded Post (M4)
Voltage - Rated AC250 V
Voltage - Rated DC250 V
