011420098
ActiveRose Enclosures
BOX ALUM 7.87"L X 5.51"W
011420098
ActiveRose Enclosures
BOX ALUM 7.87"L X 5.51"W
Description
General part information
011420098

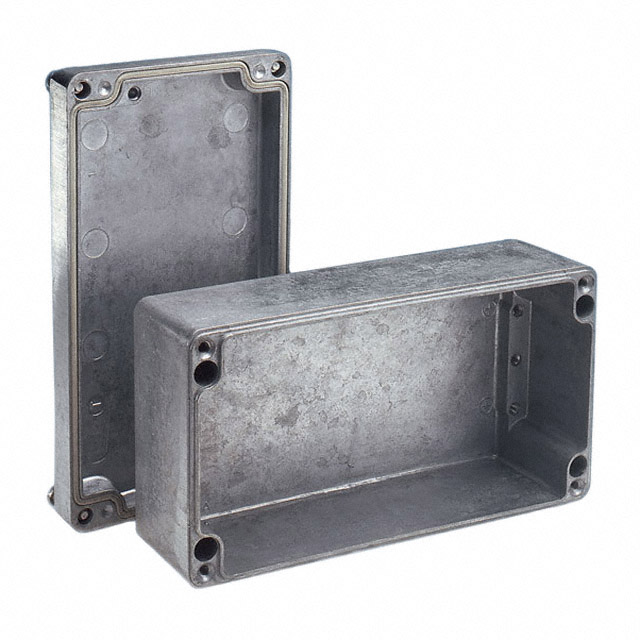

Box Metal, Aluminum Unpainted Cover Included 7.874" L x 5.512" W (200.00mm x 140.00mm) X 3.583" (91.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 011420098 |
|---|---|
| Area (L x W) | 43.4 in² |
| Color | Unpainted |
| Container Type | Box |
| Design | Cover Included |
| Features | Watertight |
| Height | 3.583 in |
| Material | Metal, Aluminum |
| Ratings | UL-508, NEMA 1, 2, 4X, IP66, 4 |
| Size / Dimension Length | 7.874 in |
| Size / Dimension Width | 5.512 in |
| Thickness | 0.157 in |
| Weight | 4.1 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
