Cable Assemblies

0039000059-12-G4-D

Active

12" PRE-CRIMP A2015 GREEN

Cable Assemblies

Active

12" PRE-CRIMP A2015 GREEN

Technical Specifications

Parameters and characteristics for this part

...

Part	Number of Conductors	Number of Rows	Color	Wire Gauge	Length	Contact Finish	Contact End	Contact End Shape
Molex 0039000059-10-B0	1	1	Black	20 AWG	10 in	Tin	Socket to Cable	Round
Molex 0039000059-12-N0	1	1	Brown	20 AWG	12 in	Tin	Socket to Cable	Round
Molex 0039000059-12-B2	1	1	Black	22 AWG	12 in	Tin	Socket to Cable	Round
Molex 0039000059-04-W4	1	1	White	24 AWG	4 in	Tin	Socket to Cable	Round
Molex 0039000059-02-W0-D	1	1	White	20 AWG	2 in	Tin	Socket to Socket
Molex 0039000059-05-L0	1	1	Blue	20 AWG	5 in	Tin	Socket to Cable	Round
Molex 0039000059-03-V0	1	1	Violet	20 AWG	3 "	Tin	Socket to Cable	Round
Molex 0039000059-11-V4	1	1	Violet	24 AWG	11 in	Tin	Socket to Cable	Round
Molex 0039000059-05-B4-D	1	1	Black	24 AWG	5 in	Tin	Socket to Socket
Molex 0039000059-10-A9-D	1	1	Orange	18 AWG	10 in	Tin	Socket to Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

3D models and CAD resources for this part

General part information

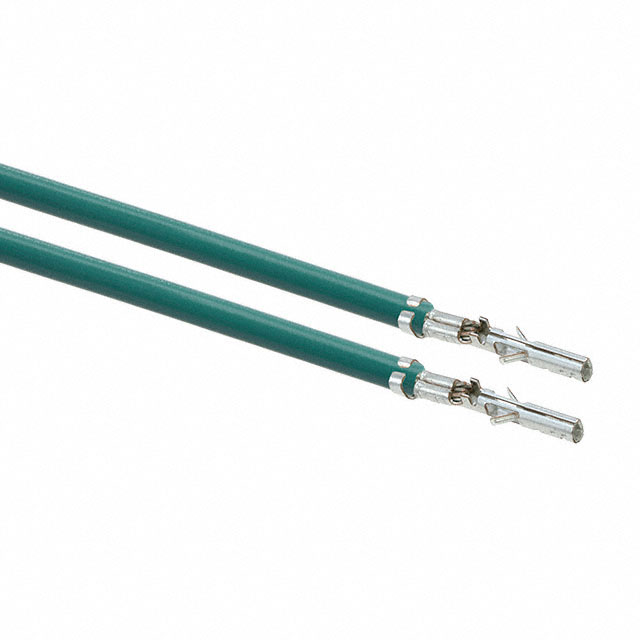

Green 24 AWG Jumper Lead Socket to Socket Tin 12.0" (304.8mm)

Technical documentation and resources
