FM2023-05

Active

American Hakko Products, Inc.

DESOLDERING TWEEZERS 140W 24V

Search across all available documentation for this part.

Active

American Hakko Products, Inc.

DESOLDERING TWEEZERS 140W 24V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FM2023-05	FM2023 Series

Features	Dual Action	Dual Action
For Use With/Related Products	FM-206, FM-203, FM-202	FM-206, FM-203, FM-202

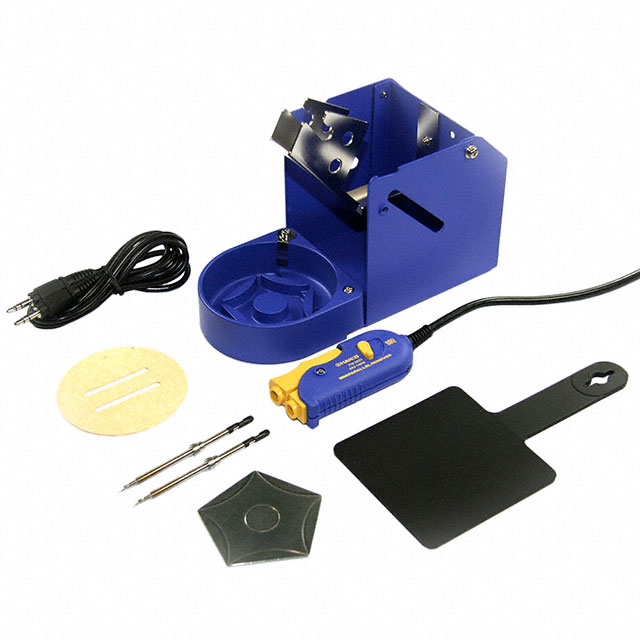

Includes	Sponge, Component Bed, Tip Removal Pad	Sponge, Component Bed, Tip Removal Pad
Power (Watts)	140 W	140 W
Tip Diameter [diameter]	0.2 mm	0.2 mm
Tip Diameter [diameter]	0.007 in	0.007 in
Tip Temperature [Max]	750 °F	750 °F
Tip Temperature [Max]	400 °C	400 °C
Tip Temperature [Min]	400 °F	400 °F
Tip Temperature [Min]	200 °C	200 °C
Tip Type	T9-I	T9-I
Type	Tweezers, Desoldering	Tweezers, Desoldering
Voltage - Input	24 V	24 V
Workstand	FH200-04	FH200-04
Workstand	-	False

DESOLDERING TWEEZERS 140W 24V

Part	Tip Temperature [Max]	Tip Temperature [Min]	Tip Temperature [Max]	Tip Temperature [Min]	Features	Tip Type	Type	Workstand	For Use With/Related Products	Tip Diameter [diameter]	Tip Diameter [diameter]	Power (Watts)	Voltage - Input	Workstand	Includes
American Hakko Products, Inc. FM2023-02	750 °F	400 °F	400 °C	200 °C	Dual Action	T9-I	Tweezers, Desoldering		FM-202, FM-203, FM-206	0.2 mm	0.007 in	140 W	24 V
American Hakko Products, Inc. FM2023-05	750 °F	400 °F	400 °C	200 °C	Dual Action	T9-I	Tweezers, Desoldering		FM-202, FM-203, FM-206	0.2 mm	0.007 in	140 W	24 V	FH200-04	Component Bed, Sponge, Tip Removal Pad

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tweezers, Desoldering 140W 24V

Technical documentation and resources
