Description
General part information
0897623074

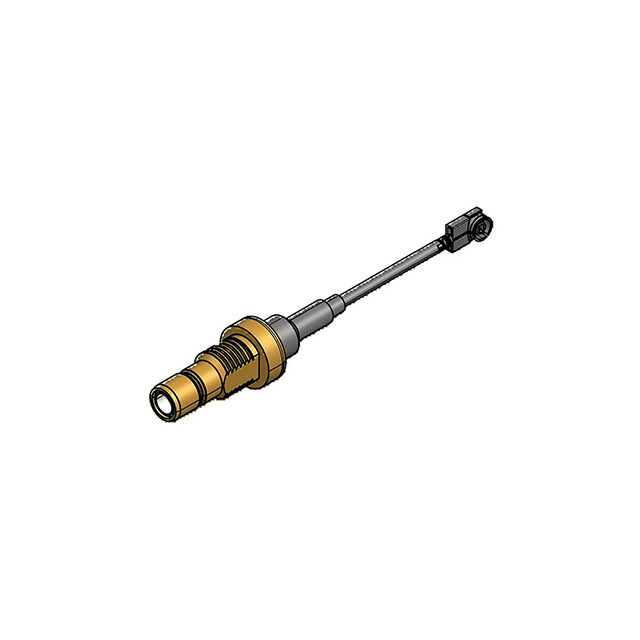

Cable Assembly Coaxial U.FL (UMCC) to SMB 1.13mm OD Coaxial Cable 2.638" (67.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 0897623074 |
|---|---|
| 1st Connector | U.FL (UMCC) Plug, Right Angle |
| 1st Connector - Orientation | Right Angle |
| 1st Connector - Type | U.FL (UMCC) Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | SMB Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Outer Diameter | 1.13 mm |
| Cable Type | Coaxial Cable, OD Coaxial Cable, 1.13mm OD Coaxial Cable |
| Cable Type Size | 1.13 |
| Length | 2.638 in |
| Overall Impedance | 50 Ohms |
| Style | SMB, U.FL (UMCC) |
