LST1-01G03-5770-01

Active

New Energy

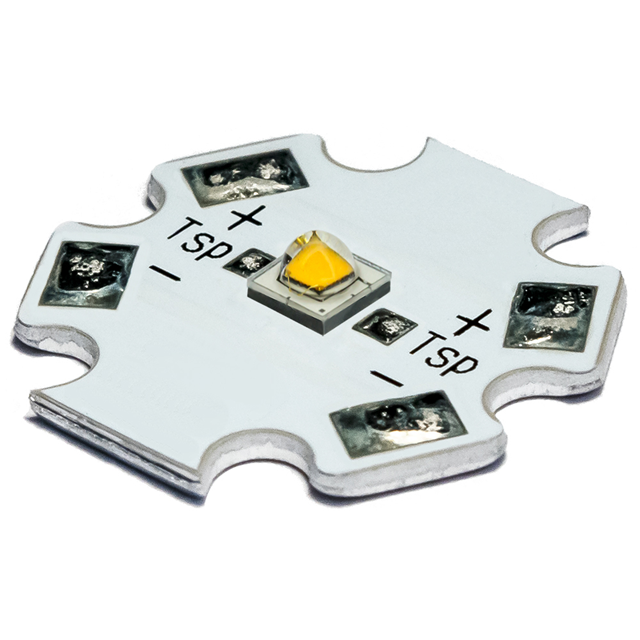

LED MOD LST1 WH STARBOARD 5700K

Search across all available documentation for this part.

Active

New Energy

LED MOD LST1 WH STARBOARD 5700K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	500	$ 4.01

General part information

LED Lighting COBs Engines Modules LED Module LST1 White, Cool Starboard

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	LST1-01G03-5770-01	LST1-01 Series

CCT (K)	5700 K	2700 - 6500 K
Color	Cool, White	UltraViolet, Cool, White, Warm, Far Red, Violet, Green, Neutral, Lime, Amber, Red, Blue
Configuration	Starboard	Starboard
CRI (Color Rendering Index)	70	65 - 95
Current - Max [Max]	3 A	1 - 800 mA
Current - Test	-	1 - 500 mA
Height [z]	1.7 mm	1.7 - 4.24 mm
Lens Type	Domed	Flat, Domed
Lumens/Watt @ Current - Test	144 lm/W	31 - 150 lm/W
Luminous Flux @ Current/Temperature	302 lm	2 - 1340 mW
Size / Dimension [diameter]	19.89 mm	19.89 mm
Temperature - Test	-	85 °C
Type	LED Module	LED Module, Chip On Board (COB)
Viewing Angle	-	60 - 170 °
Viewing Angle	-	90 °
Voltage - Forward (Vf) (Typ)	3.3 V	1.4 - 11.9 V
Wavelength	-	281 - 940 nm
Wavelength	-	275 - 286 nm
Wavelength	-	270 - 280 nm

LED MOD ULTRAVIOLET STARBOARD

Part	Height [z]	Configuration	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature	Type	Size / Dimension [diameter]	Current - Test	Current - Max [Max]	Lens Type	Wavelength	Wavelength [Max]	Wavelength [Min]	Viewing Angle	Color	CRI (Color Rendering Index)	Lumens/Watt @ Current - Test	CCT (K)	Temperature - Test
New Energy LST1-01G06-UV01-01	2.59 mm	Starboard	5.2 V	2.6 mW	LED Module	19.89 mm	20 mA	40 mA	Flat	283 nm	286 nm	280 nm	150 °	UltraViolet
New Energy LST1-01G03-5770-01	1.7 mm	Starboard	3.3 V	302 lm	LED Module	19.89 mm		3 A	Domed					Cool, White	70	144 lm/W	5700 K
New Energy LST1-01H07-3080-01	3.05 mm	Starboard	2.75 V		LED Module	19.89 mm	350 mA	1.23 A	Domed				120 °	Warm, White		95 lm/W		85 °C
New Energy LST1-01G03-2795-01	1.7 mm	Starboard	3.1 V	167 lm	LED Module	19.89 mm		3 A	Domed					Warm, White	95	87 lm/W	2700 K
New Energy LST1-01F06-FRD1-00		Starboard	1.85 V	282 mW	Chip On Board (COB)		350 mA			735 nm			120 °	Far Red
New Energy LST1-01G01-UV01-00		Starboard	3.6 V	875 mW	Chip On Board (COB)		500 mA			365 nm			130 °	Violet
New Energy LST1-01C48-5070-01		Starboard	11.9 V	590 lm	LED Module	19.89 mm	350 mA	1.05 A	Domed					Cool, White	70	142 lm/W	5000 K
New Energy LST1-01G03-3595-01	1.7 mm	Starboard	3.1 V	193 lm	LED Module	19.89 mm		3 A	Domed					Warm, White	95	101 lm/W	3500 K
New Energy LST1-01H07-GRN1-01	3.05 mm	Starboard	3.05 V		LED Module	19.89 mm	350 mA	1.05 A	Domed				120 °	Green		117 lm/W		85 °C
New Energy LST1-01G01-IR01-00		Starboard	1.5 V	280 mW	LED Module		350 mA	1.5 A	Domed	850 nm			130 °
