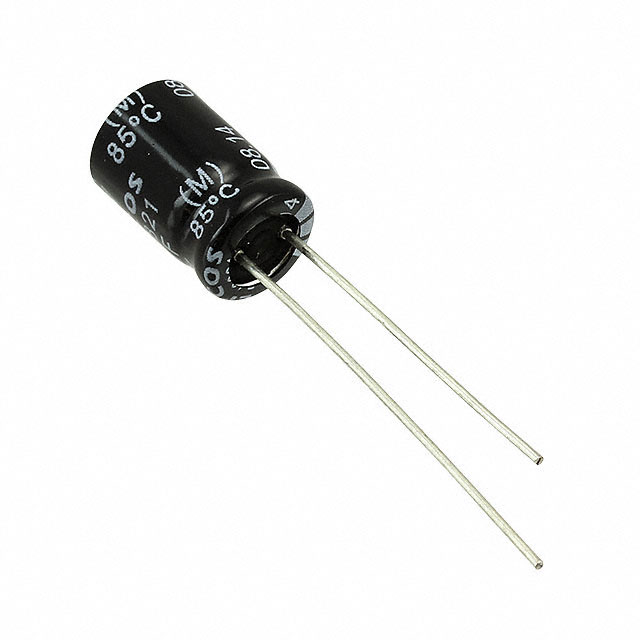

Specification	B43821A1335M

Applications	General Purpose
Capacitance	3.3 µF
ESR (Equivalent Series Resistance)	56 Ohm
Height - Seated (Max)	0.472 in
Lead Spacing	0.098 in
Lifetime	3000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can, Radial
Polarization	Polar
Ripple Current	40 mA
Size / Dimension Diameter	0.248 in
Tolerance	20 %
Voltage - Rated	160 V
