CIRCULAR METRIC CONNECTORS CIRCULAR METRIC CONNECTOR, Y ADAPTOR, METAL, A CODING, 4A, 03 PINS, (END 1) FEMALE FEMALE, (END 2) FEMALE FEMALE, (END 3) FEMALE FEMALE, SCREW THREAD, IP68 MATED

Find alt

Alpha

YA-A03F-A03F-A03F-01

Active

McGill Microwave Systems

CIRCULAR METRIC CONNECTORS CIRCULAR METRIC CONNECTOR, Y ADAPTOR, METAL, A CODING, 4A, 03 PINS, (END 1) FEMALE FEMALE, (END 2) FEMALE FEMALE, (END 3) FEMALE FEMALE, SCREW THREAD, IP68 MATED

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

M12 Series

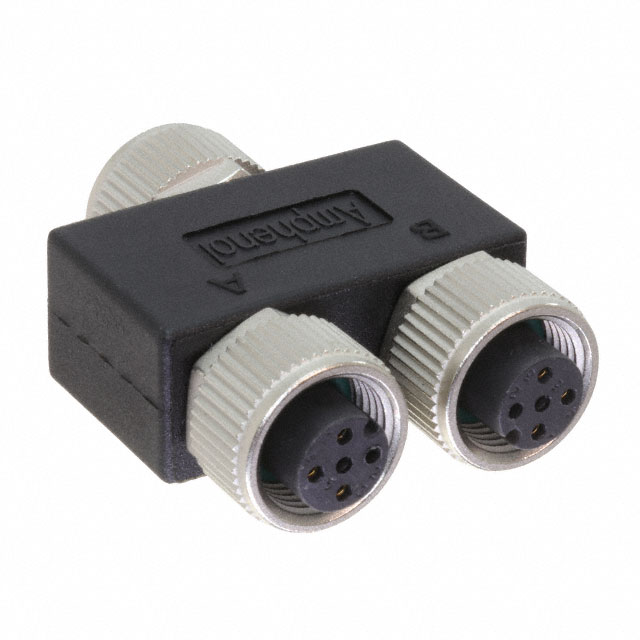

Circular Connector Distributor Y-Shaped 3/3 (2) Female Sockets/Female Sockets (2) Free Hanging (In-Line)

Technical Specifications

Parameters and characteristics for this part

Specification	YA-A03F-A03F-A03F-01

Connector Style	Distributor Y-Shaped
Convert From (Adapter End)	Female Sockets
Convert To (Adapter End)	Female Sockets
Convert To (Adapter End) Count	2 count
Fastening Type	Threaded
Features	Coupling Nut
Housing Material	Thermoplastic
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Mounting Type	Free Hanging (In-Line)
Number of Positions (Convert From)	3
Number of Positions (Convert To)	3
Number of Positions (Convert To) Secondary	2
Orientation (Convert From)	A
Orientation (Convert To)	A
Shell Size - Insert (Convert From)	M12
Shell Size - Insert (Convert To)	M12
Shielding	Unshielded

M12 Series

...

Part	Length	Ingress Protection Description	Ingress Protection IP Rating	Color	1st Connector Gender	Cable Material	Cable Type	1st Connector Shell Size - Insert	1st Connector Orientation	1st Connector Pin Count	1st Connector Type	1st Connector Number of Positions Loaded	1st Connector Mounting Type	Shielding	Usage	Assembly Configuration	1st Connector Number of Positions	2nd Connector Type	2nd Connector Mounting Type	2nd Connector Shell Size - Insert (Code)	2nd Connector Gender	2nd Connector Number of Positions	2nd Connector Number of Positions Loaded	2nd Connector Orientation	Orientation	Number of Positions	Connector Type	Contact Finish - Mating	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating	Fastening Type	Mounting Type	Features	Shell Finish	Primary Material	Shell Material	Termination	Mounting Feature	Current Rating	Shell Size - Insert	Contact Material	Insert Material	Orientation (Convert From)	Orientation (Convert To)	Number of Positions (Convert From)	Number of Positions (Convert To)	Housing Material	Connector Style	Convert From (Adapter End)	Convert To (Adapter End)	Shell Size - Insert (Convert To)	Shell Size - Insert (Convert From)
McGill Microwave Systems SB-050500-MM0-TSA02	6.56 ft	Dust Tight Waterproof; NMEA 2000	IP68	Black	Male Pins	Polyvinyl Chloride (PVC)	Round	M12	B	2	Receptacle Right Angle	All	Free Hanging (In-Line)	Unshielded	Industrial Environments	T-Adapter on One End	5 positions	Wire Leads
McGill Microwave Systems M12A04FL-12AMR-SBA05	1.64 ft	Dust Tight Water Resistant Waterproof	IP68 IP69K	Black	Male Pins	Polyurethane (PUR)	Round	M12	A		Receptacle Right Angle	All	Free Hanging (In-Line)	Unshielded	Industrial Environments	Standard	4 positions	Plug	Free Hanging (In-Line)	M12	Female Sockets	4	All	A
McGill Microwave Systems M12A08FR-12AFR-SB001	3.28 ft	Dust Tight Water Resistant Waterproof	IP68 IP69K	Black	Female Sockets	Polyurethane (PUR)	Round	M12	A		Plug Right Angle	All	Free Hanging (In-Line)	Unshielded	Industrial Environments	Standard	8 positions	Plug Right Angle	Free Hanging (In-Line)	M12	Female Sockets	8	All	A
McGill Microwave Systems MSAS-10PFFP-SF8002		Dust Tight Water Resistant Waterproof	IP68 IP69K	Silver										Shielded											A	10	Female Sockets Plug	Gold	-40 °C	105 °C	30 V	Threaded	Panel Mount Through Hole	Ground	Nickel	Metal	Zinc Alloy	Solder	Bulkhead Front Side Nut	1.5 A	M12-10	Copper Alloy	Glass Filled Nylon PA Polyamide
McGill Microwave Systems SI-050000-Z00-YSB02	6.56 ft	Dust Tight Waterproof; NMEA 2000	IP68		Female Sockets		Round Split	M12			Plug	All	Free Hanging (In-Line)	Unshielded	Industrial Environments	Y-Adapter on One End	5 positions	Wire Leads
McGill Microwave Systems IA-A03F-A03F-0000-01		Dust Tight Waterproof	IP68											Unshielded																		Threaded	Free Hanging (In-Line)	Coupling Nut										A	A	3	3	Thermoplastic	Standard	Female Sockets	Female Sockets	M12	M12
