40955
ActiveTE Connectivity AMP Connectors

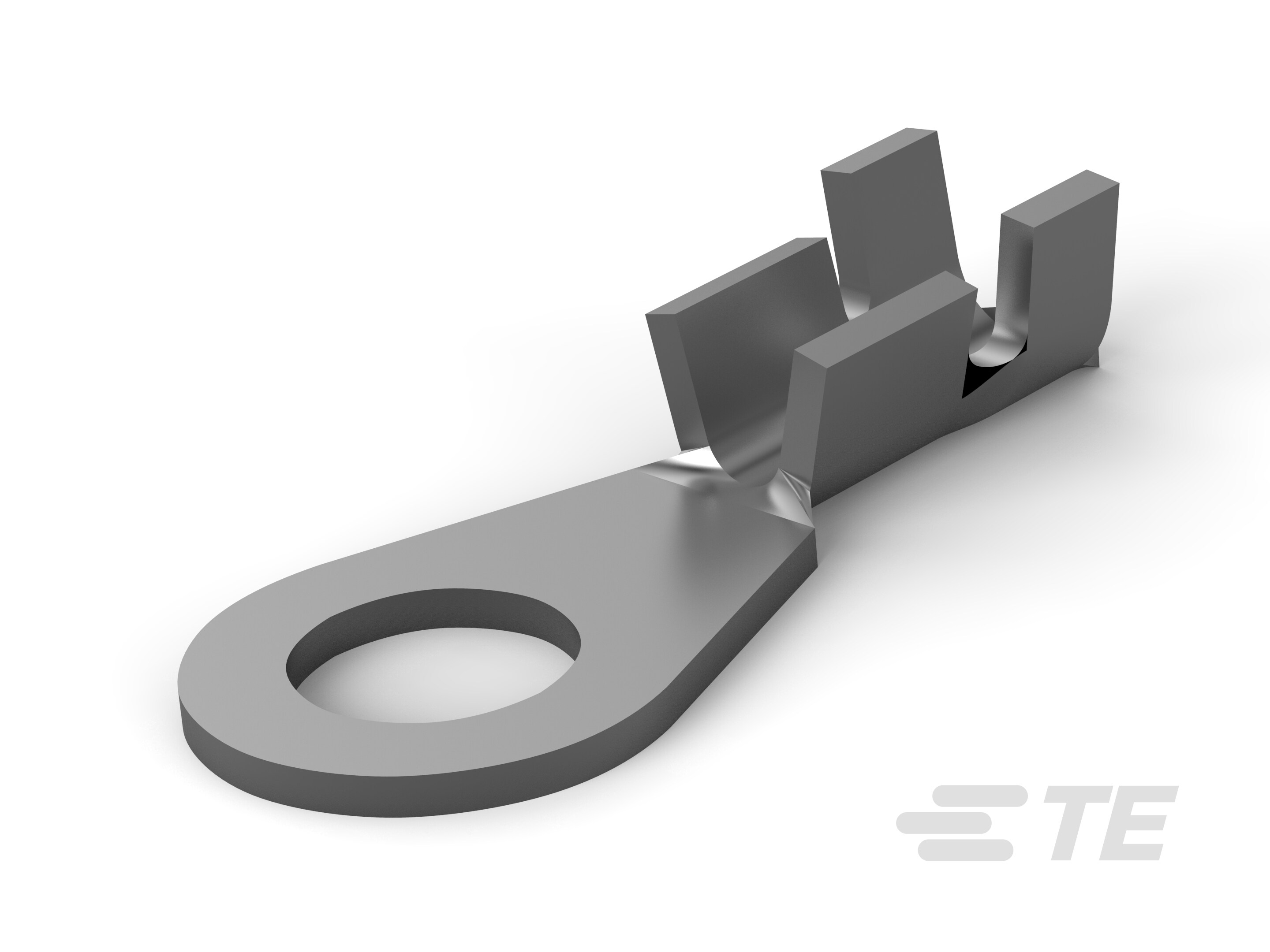

RING TONGUE TERMINAL, M5, #10, 16 AWG, 1.4 MM²
40955
ActiveTE Connectivity AMP Connectors
RING TONGUE TERMINAL, M5, #10, 16 AWG, 1.4 MM²
Description
General part information
40955
Closed Ring Tongue Terminal, 20 – 16 AWG, #10 Stud, 5 mm [.197 in] Stud Diameter, Open Barrel, Straight, Tin Plating, Uninsulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 40955 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Insulation | Non-Insulated |
| Length - Overall | 0.86 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 10 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.03 in |
| Width - Outer Edges | 0.342 in |
| Wire Gauge (AWG) (Max) | 20.5 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
