CFSA35606P1-30D43F
ActiveTE Connectivity AMP Connectors
OMNI,LOW PIM,30CM,D43F, 350-6000MHZ,6DBI
CFSA35606P1-30D43F
ActiveTE Connectivity AMP Connectors
OMNI,LOW PIM,30CM,D43F, 350-6000MHZ,6DBI
Description
General part information
CFSA35606P1-30D43F

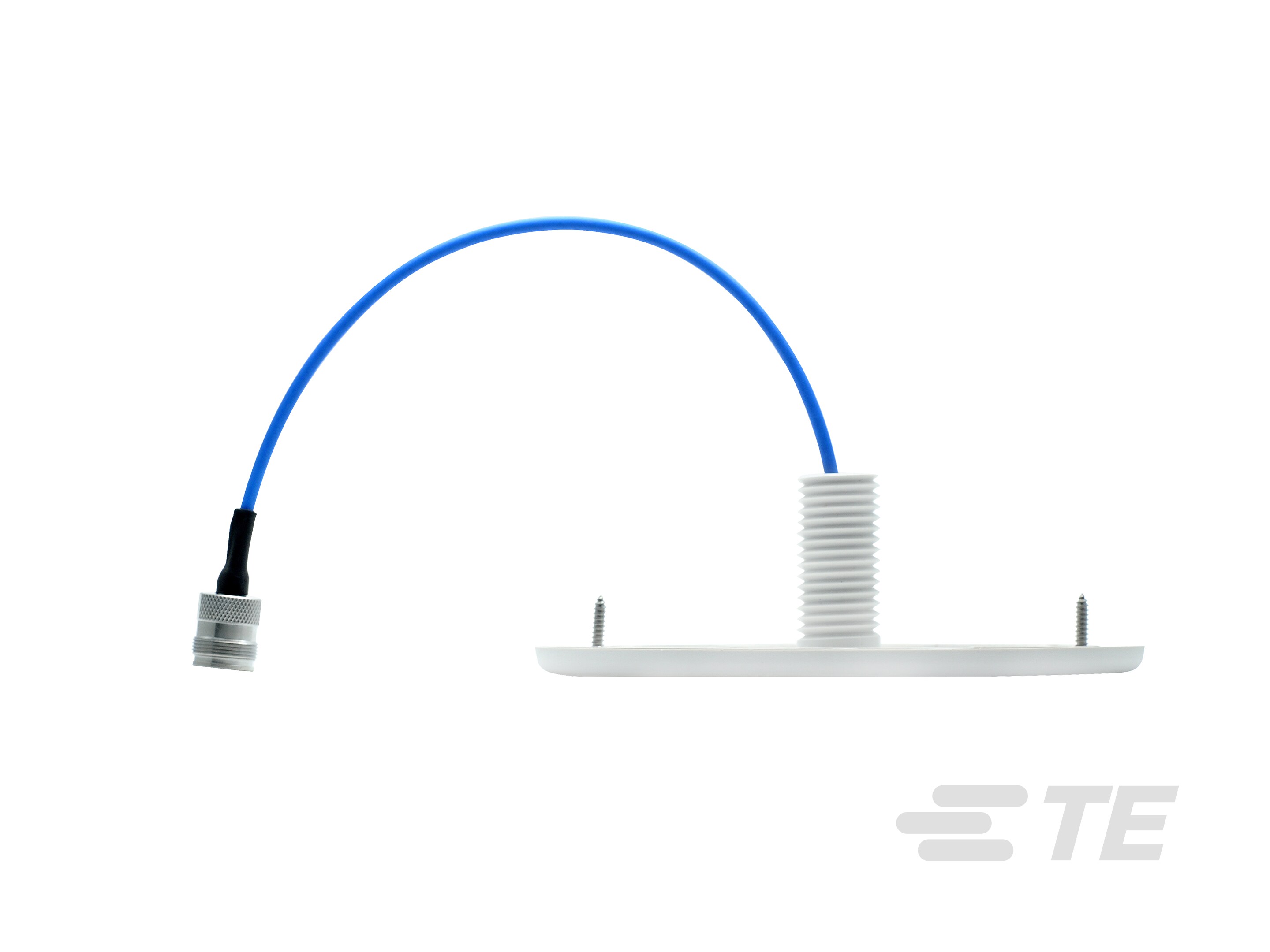

Dome/Puck Antenna, Multi Band, Cellular / DAS / UHF, External Mount, Wall/Ceiling Mount, 4.3-10, Omnidirectional, Single Port, CFSA Series
Technical Specifications
Parameters and characteristics for this part
| Specification | CFSA35606P1-30D43F |
|---|---|
| Antenna Type | Flat Panel |
| Applications | UMTS, AWS, LTE, CBRS, 3G, 2G, 4G |
| Features | 304.8mm, Cable |
| Frequency (Center/Band) | 649MHz, 752MHz, 1.92GHz, 850MHz, 2.05GHz, 1.45GHz, 2.5GHz, 927MHz, 365MHz, 5.41GHz, 3.75GHz, 450MHz, 1.79GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 380 MHz |
| Frequency Range (Band 1) Minimum | 350 MHz |
| Frequency Range (Band 10) Maximum | 2.18 GHz |
| Frequency Range (Band 10) Minimum | 1.91 GHz |
| Frequency Range (Band 11) Maximum | 2.7 GHz |
| Frequency Range (Band 11) Minimum | 2.3 GHz |
| Frequency Range (Band 12) Maximum | 4.2 GHz |
| Frequency Range (Band 12) Minimum | 3.3 GHz |
| Frequency Range (Band 13) Maximum | 5.925 GHz |
| Frequency Range (Band 13) Minimum | 4.9 GHz |
| Frequency Range (Band 2) Maximum | 520 MHz |
| Frequency Range (Band 2) Minimum | 380 MHz |
| Frequency Range (Band 3) Maximum | 698 MHz |
| Frequency Range (Band 3) Minimum | 600 MHz |
| Frequency Range (Band 4) Maximum | 806 MHz |
| Frequency Range (Band 4) Minimum | 698 MHz |
| Frequency Range (Band 5) Maximum | 894 MHz |
| Frequency Range (Band 5) Minimum | 806 MHz |
| Frequency Range (Band 6) Maximum | 960 MHz |
| Frequency Range (Band 6) Minimum | 894 MHz |
| Frequency Range (Band 7) Maximum | 1.55 GHz |
| Frequency Range (Band 7) Minimum | 1.35 GHz |
| Frequency Range (Band 8) Maximum | 1.88 GHz |
| Frequency Range (Band 8) Minimum | 1.69 GHz |
| Frequency Range (Band 9) Maximum | 1.99 GHz |
| Frequency Range (Band 9) Minimum | 1.85 GHz |
| Gain | 4.6 dBi, 6.8 dBi, 4 dBi, 5.7 dBi, 4.4 dBi, 3.7 dBi, 4.1 dBi, 7.3 dBi, 5.4 dBi, 4.2 dBi, 4.5 dBi, 5.6 dBi, 5 dBi |
| Height (Max) | 0.3 in |
| Mounting Type | Ceiling Mount |
| Number of Bands | 13 |
| RF Family/Standard | Cellular |
| Termination Gender | Female |
| Termination Pin Count | 10 pins |
| Termination Pitch | 4.3 mm |
| VSWR | 2.5, 2 |
| VSWR Maximum | 2.5 |
| VSWR Minimum | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
Datasheet
OMNI,LOW PIM,30CM,D43F, 350-6000MHz,6dBi
CFSA35606P / CFSA35606P1 Assembly and Installation Instructions
ENG_CD_CFSA35606P1-x30xxMO_F2.pdf
Ultra-low Profile/Low PIM Ceiling Mount Antenna 350-520 MHz/600-960 MHz/ 1350-1550 MHz/1690-6000 MHz
UK Declaration of Conformity
ENG_CD_CFSA35606P1-X30XXMO-L_A1.pdf
