177898-1
ActiveTE Connectivity AMP Connectors

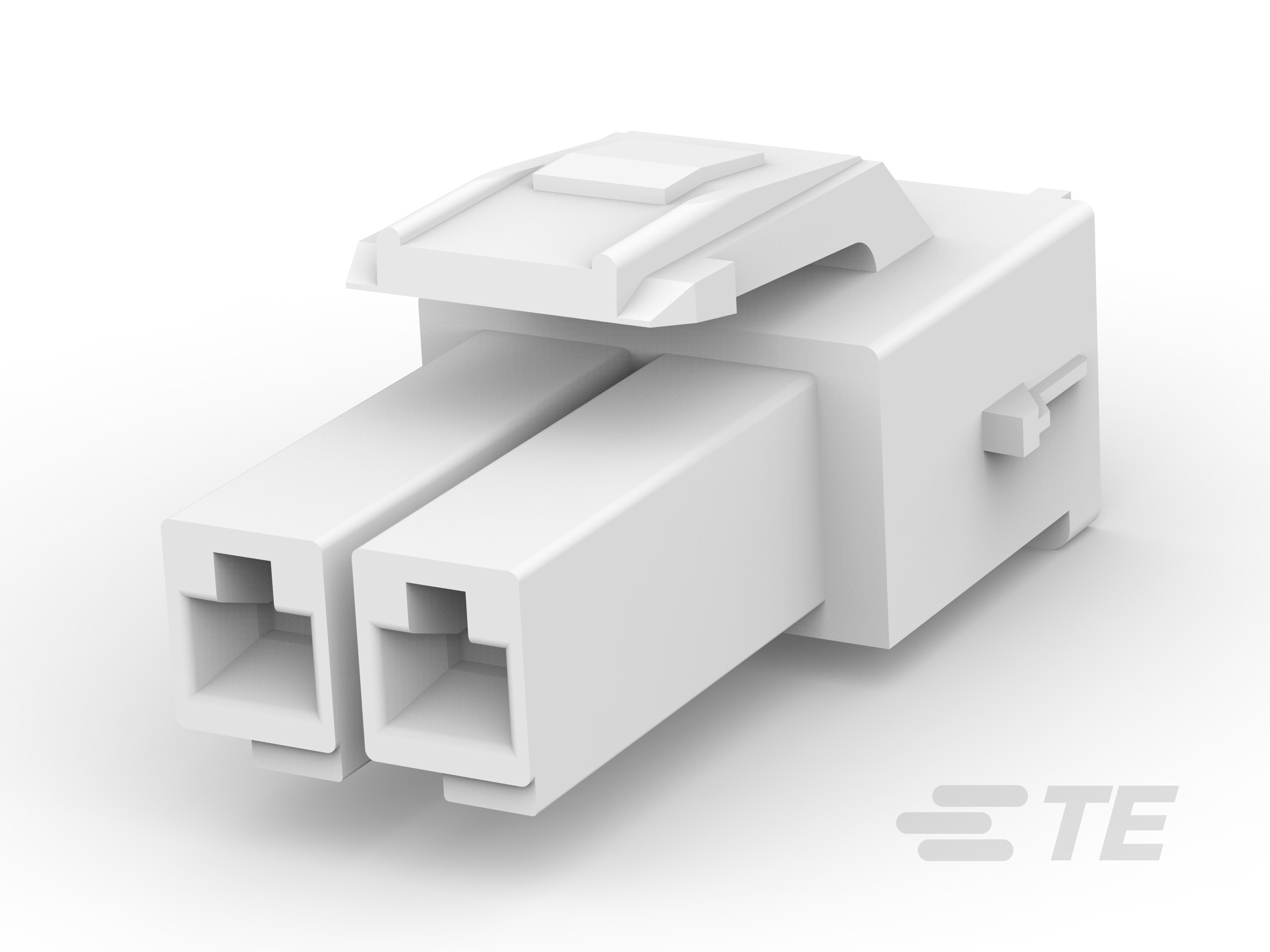

CONN HOUSING PL 2 POS 3.96MM CRIMP ST CABLE MOUNT NATURAL BAG
177898-1
ActiveTE Connectivity AMP Connectors
CONN HOUSING PL 2 POS 3.96MM CRIMP ST CABLE MOUNT NATURAL BAG
Description
General part information
177898-1
2 Position, Plug, Housing, Crimp, Wire-to-Board / Wire-to-Panel / Wire-to-Wire, UL 94V-0, 3.96 mm [.156 in] Centerline, 1 Row, Power Double Lock
Technical Specifications
Parameters and characteristics for this part
| Specification | 177898-1 |
|---|---|
| Color | Natural |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -30 °C |
| Pitch | 0.156 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
ENG_CD_177898_E5.pdf
Crimping AMP Power Double Lock Contact
AMP Power DBL Lock Connector W-W Type
AMP Power DBL Lock Connector W-B Type
Product Specification - Power Double Lock Connector System
AMP POWER DOUBLELOCK CONNECTOR SERIES
SOFT_SHELL_PIN_AND_SOCKET_CONNECTORS_CATALOG
Datasheet
AMP POWER DOUBLE LOCK CONNECTOR REPORT
AMP Power Double Lock Connectors
177898-1 | Datasheet
