Description
General part information

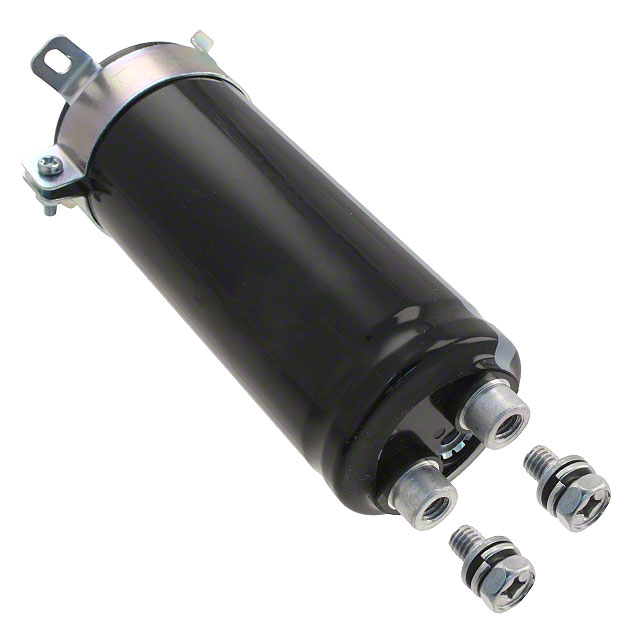

JJL0E707MSEDBN
700 F (EDLC) Supercapacitor 2.5 V Radial, Can - Screw Terminals 3.5mOhm 2000 Hrs @ 60°C
Technical Specifications
Parameters and characteristics for this part
| Specification | JJL0E707MSEDBN |
|---|---|
| Capacitance | 700 F |
| ESR (Equivalent Series Resistance) | 3.5 mOhm |
| Height - Seated (Max) | 4.252 in |
| Lead Spacing | 0.74 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can - Screw Terminals, Radial |
| Size / Dimension Diameter | 1.575 in |
| Termination | Screw Terminals |
| Tolerance | 20 % |
| Voltage - Rated | 2.5 V |
