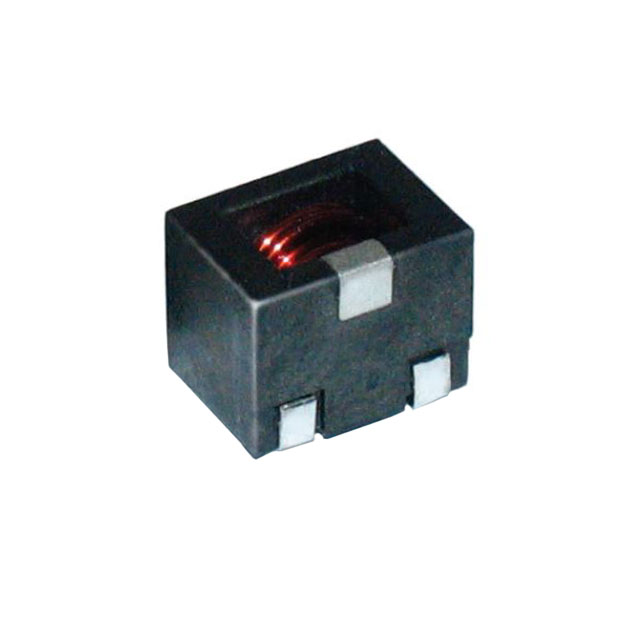

PG1096.252NLT
2.25 µH Unshielded Wirewound Inductor 45 A 1.2mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PG1096.252NLT |
|---|---|
| Current - Saturation (Isat) | 55 A |
| Current Rating | 45 A |
| DC Resistance (DCR) (Max) | 1.2 mOhm |
| Height - Seated (Max) | 0.583 in |
| Inductance | 2.25 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 1.024 in |
| Size / Dimension Width | 1.024 in |
| Tolerance | 20 % |
| Type | Wirewound |
