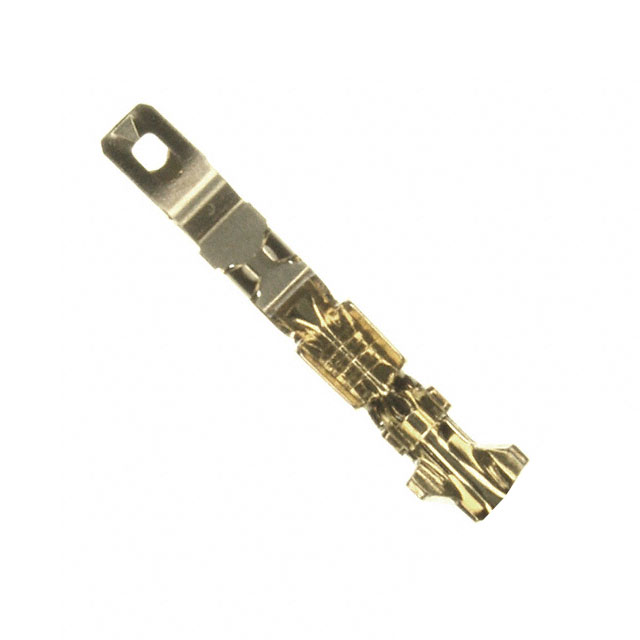

5-867052-1
ActiveTE Connectivity AMP Connectors
CONN 20AWG CRMP TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5-867052-1
ActiveTE Connectivity AMP Connectors
CONN 20AWG CRMP TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5-867052-1 | 867052 Series |
|---|---|---|
| Contact Finish | Tin | Tin, Gold |
| Contact Finish Thickness | 2.54 µm | 0.76 - 2.54 µm |
| Contact Finish Thickness | 100 µin | 30 - 100 µin |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Non-Gendered | Non-Gendered |
| Wire Gauge | 20 AWG | 20 AWG |
867052 Series
CONN 20AWG CRMP TIN
| Part | Contact Termination | Contact Finish | Pin or Socket | Wire Gauge | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 5-867052-1 | Crimp | Tin | Non-Gendered | 20 AWG | 2.54 µm | 100 µin |
TE Connectivity AMP Connectors 867052-2 | Crimp | Gold | Non-Gendered | 20 AWG | 0.76 Ám | 30 Áin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.82 | |
| 10 | $ 0.78 | |||
| 25 | $ 0.75 | |||
| 50 | $ 0.73 | |||
| 100 | $ 0.64 | |||
| 250 | $ 0.62 | |||
| 500 | $ 0.58 | |||
| 1000 | $ 0.50 | |||
| 2500 | $ 0.47 | |||
| Tape & Reel (TR) | 7000 | $ 0.47 | ||
| 14000 | $ 0.46 | |||
Description
General part information
867052 Series
Non-Gendered Contact Tin 20 AWG Crimp
