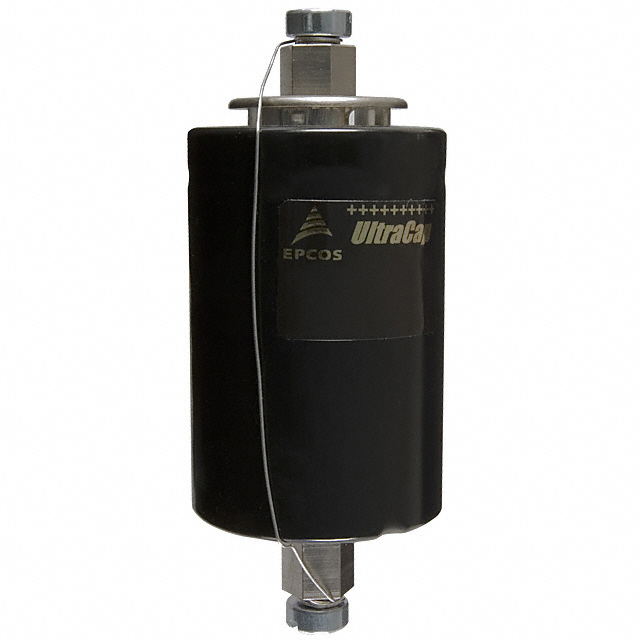

B49410B2605Q000
ObsoleteEPCOS - TDK Electronics
CAP 600F -10% +30% 2.5V CHAS MT
B49410B2605Q000
ObsoleteEPCOS - TDK Electronics
CAP 600F -10% +30% 2.5V CHAS MT
Description
General part information
B49410B2605Q000
600 F (EDLC) Supercapacitor 2.5 V Axial, Can - Screw Terminals 0.6mOhm @ 1kHz 90000 Hrs @ 25°C
Technical Specifications
Parameters and characteristics for this part
| Specification | B49410B2605Q000 |
|---|---|
| Capacitance | 600 F |
| ESR (Equivalent Series Resistance) | 0.6 mOhm |
| Lifetime | 90000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -30 °C |
| Package / Case | Axial, Can - Screw Terminals |
| Size / Dimension Diameter | 1.969 in |
| Size / Dimension Length | 4.331 in |
| Termination | Screw Terminals |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 30 % |
| Voltage - Rated | 2.5 V |
