KPDA050P-H8-B
ActiveRenesas Electronics Corporation
SENSOR PHOTODIODE 780NM TO206AA
KPDA050P-H8-B
ActiveRenesas Electronics Corporation
SENSOR PHOTODIODE 780NM TO206AA
Description
General part information
KPDA050P-H8-B

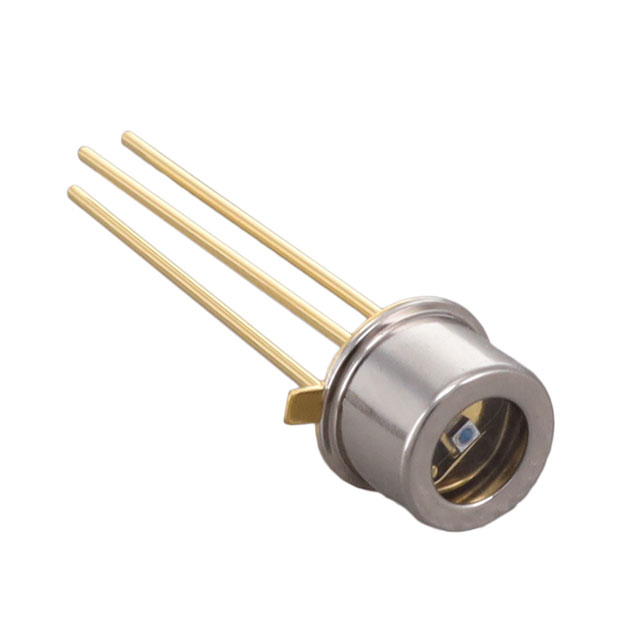

Photodiode 780nm TO-206AA, TO-18-3 Metal Can
Technical Specifications
Parameters and characteristics for this part
| Specification | KPDA050P-H8-B |
|---|---|
| Active Area Diameter | 0.5 mm |
| Active Area Shape | Dia |
| Current - Dark (Typ) | 20 pA |
| Diode Type | Avalanche |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | TO-18-3 Metal Can, TO-206AA |
| Responsivity | 0.45 A/W |
| Spectral Range (Maximum) | 1000 nm |
| Spectral Range (Minimum) | 400 nm |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Wavelength | 780 nm |
