Description
General part information

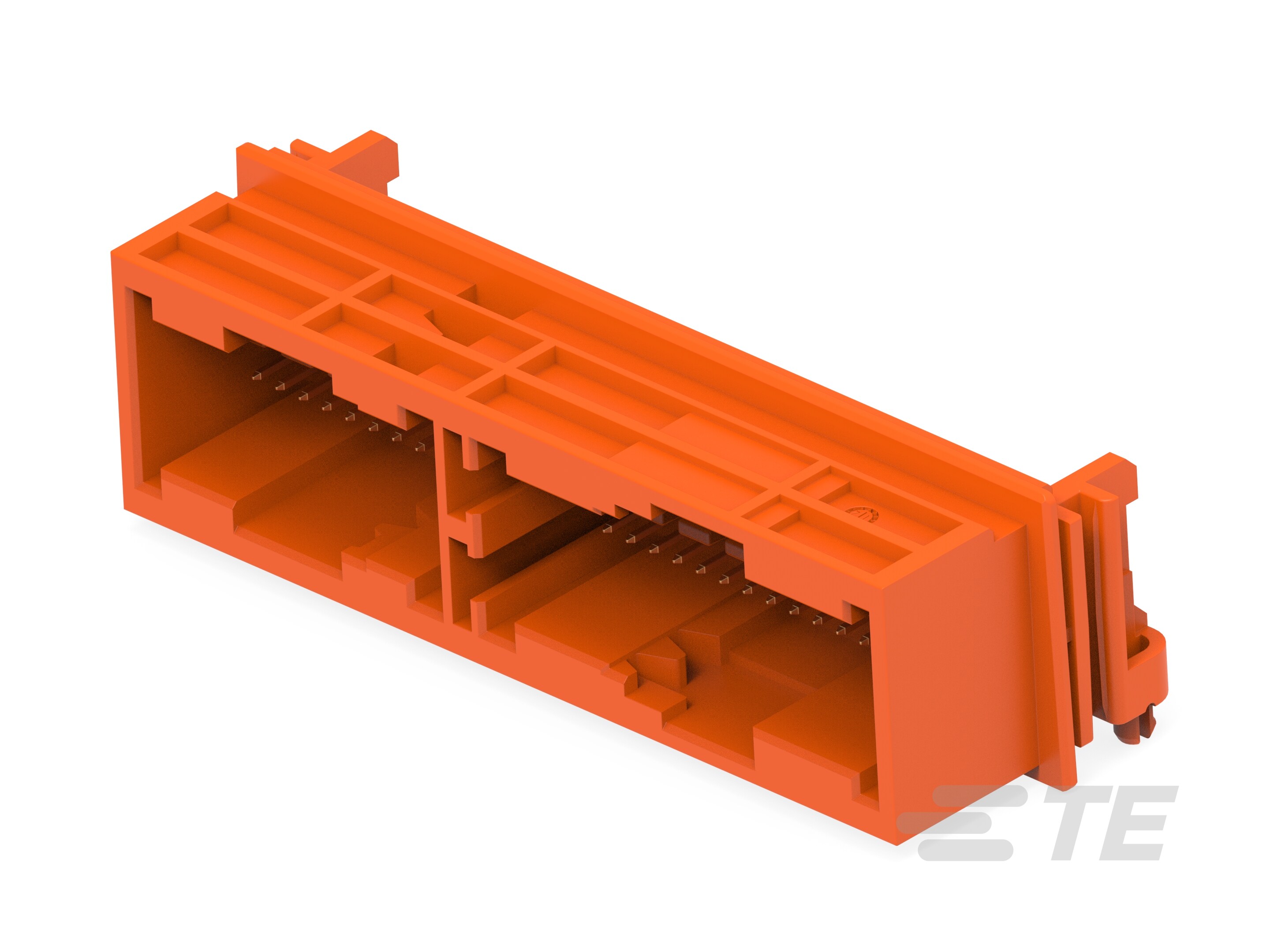

2209023-2
Horizontal, 56 Position, 2 Rows, 2.54mm [.1in] Centerline, Gold (Au), Printed Circuit Board, Yellow, Board Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 2209023-2 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 15.7 µin |
| Contact Length - Mating | 0.264 in |
| Contact Length - Post | 0.091 in |
| Contact Material | Copper Tin |
| Contact Shape | Square |
| Contact Type | Tab |
| Fastening Type | Push-Pull |
| Features | Board Lock |
| Insulation Color | Orange |
| Insulation Height | 1.039 in |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Number of Positions | 56 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch - Mating | 0.1 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
