DG103395
ActiveVishay Ametherm

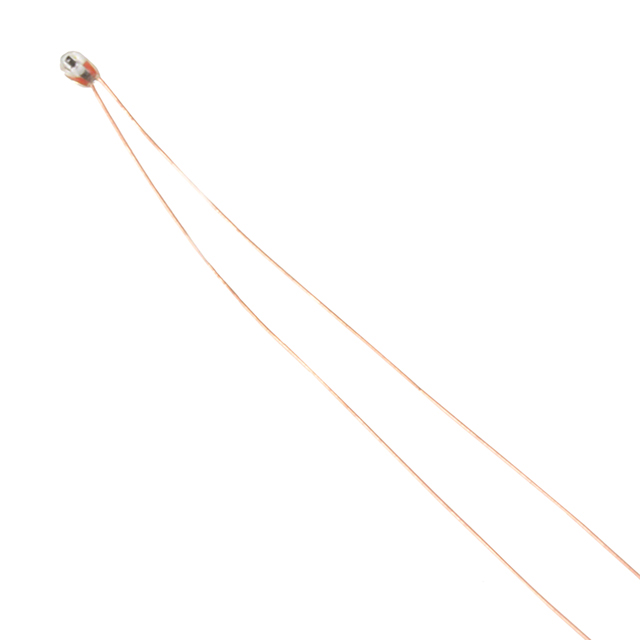

THERMISTOR NTC 10KOHM 3934K BEAD
DG103395
ActiveVishay Ametherm
THERMISTOR NTC 10KOHM 3934K BEAD
Description
General part information
DG103395
NTC Thermistor 10k Bead, Glass
Technical Specifications
Parameters and characteristics for this part
| Specification | DG103395 |
|---|---|
| B Value (25/85) | 3988 K |
| B Value Tolerance | 3 % |
| B0/50 Temperature | 3892 K |
| B25/50 | 3934 K |
| B25/75 | 3960 K |
| Beta (B25/100) | 3999 K |
| Length - Lead Wire | 2.56 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 300 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Bead, Glass |
| Power - Max | 30 mW |
| Resistance (Ohms) | 10 kOhm |
| Resistance Tolerance (%) | 2 % |
