095-850-309-150
ActiveMcGill Microwave Systems
CBL ASSY MHF1 LK-TNC J-PL 5.906"
095-850-309-150
ActiveMcGill Microwave Systems
CBL ASSY MHF1 LK-TNC J-PL 5.906"
Description
General part information
095-850-309-150

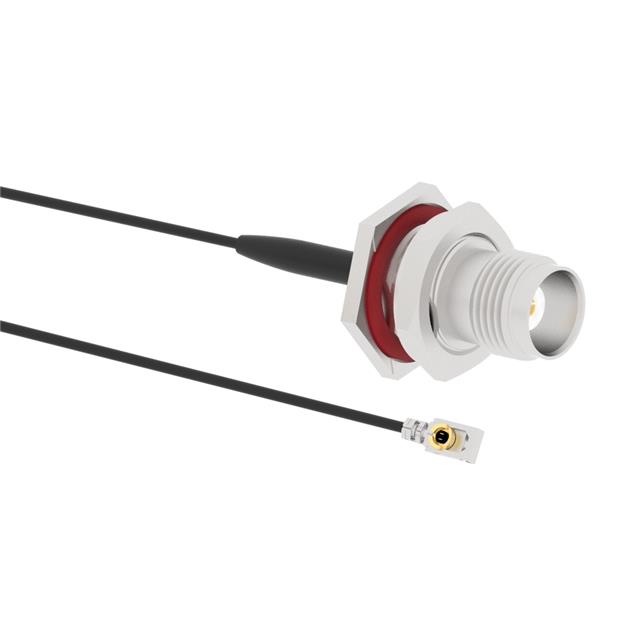

Cable Assembly Coaxial IPEX MHF1 LK to TNC 1.13mm OD Coaxial Cable 5.906" (150.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 095-850-309-150 |
|---|---|
| 1st Connector | TNC Jack |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | IPEX MHFI LK (Locking) Plug, Right Angle, I-PEX MHFI LK (Locking) Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Outer Diameter | 1.13 mm |
| Cable Type | Coaxial Cable, OD Coaxial Cable, 1.13mm OD Coaxial Cable |
| Cable Type Size | 1.13 |
| Color | Black |
| Frequency - Max | 9 GHz |
| Length | 5.906 in |
| Overall Impedance | 50 Ohms |
| Style | IPEX MHF1 LK to TNC, I-PEX MHF1 LK to TNC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
