2385001-2
ActiveTE Connectivity AMP Connectors

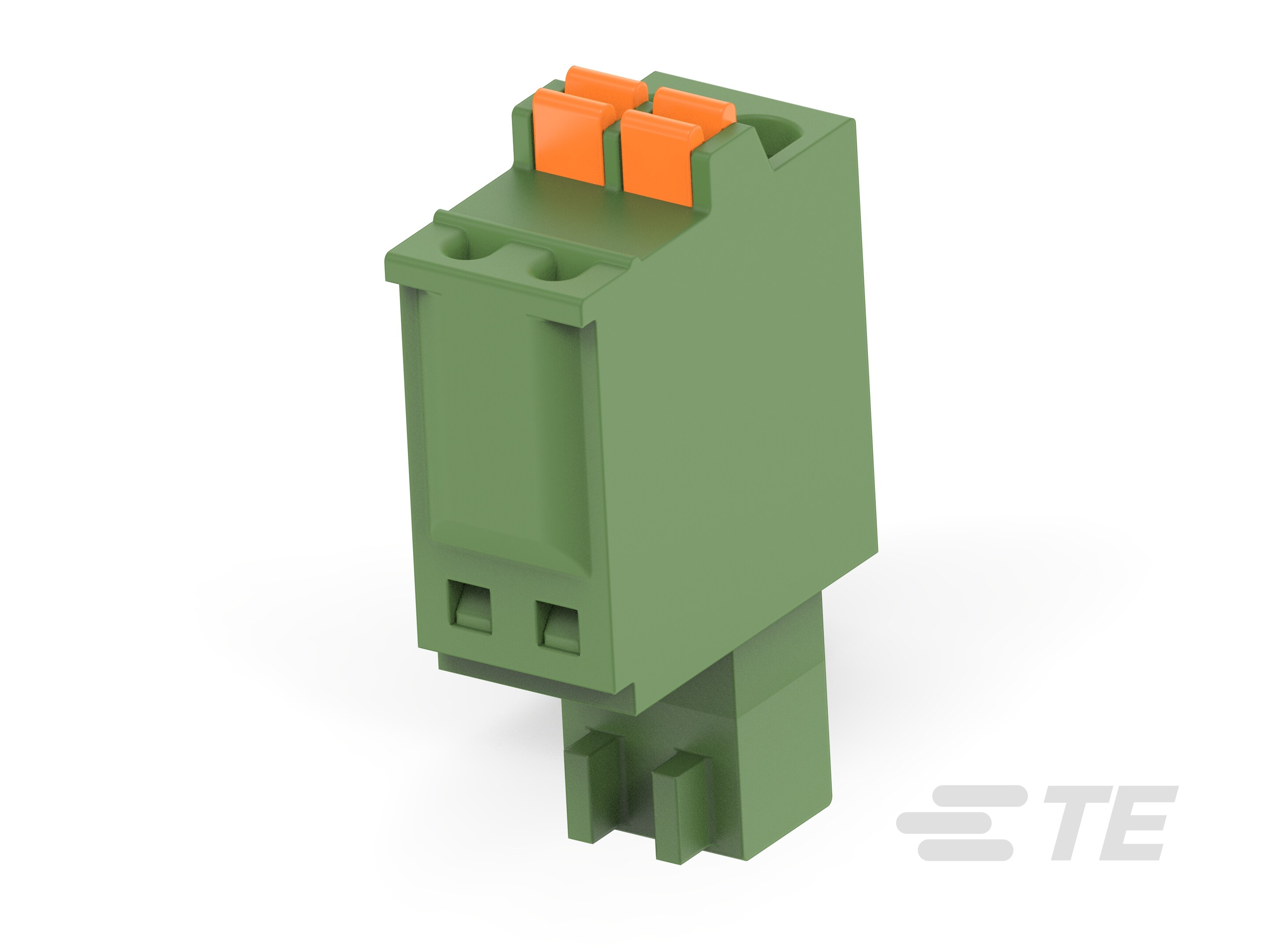

PLUGGABLE TERMINAL BLOCKS 2 POS SPRING TB PLUG, PITCH 2.5
2385001-2
ActiveTE Connectivity AMP Connectors
PLUGGABLE TERMINAL BLOCKS 2 POS SPRING TB PLUG, PITCH 2.5
Description
General part information
2385001-2
2 Position PCB Terminal Block, Plug, Wire-to-Board, 2.5 mm [.098 in] Centerline, 1 Row, 180° Wire Entry Angle, 20 – 28 AWG, .08 – .52 mm² Wire
Technical Specifications
Parameters and characteristics for this part
| Specification | 2385001-2 |
|---|---|
| Color | Green |
| Contact Mating Finish | Tin |
| Current - UL | 4 A |
| Features | Push Button Actuated |
| Mounting Type | Free Hanging (In-Line) |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.098 in |
| Plug Wire Entry Angle | 180 ° |
| Positions Per Level | 2 |
| Termination Style | Screwless - Leg Spring, Push-In Spring |
| Type | Female Sockets, Plug |
| Voltage - UL | 150 V |
| Wire Gauge or Range - AWG (Max) | 28 AWG |
| Wire Gauge or Range - AWG (Min) | 20 AWG |
| Wire Gauge or Range - mm² (Maximum) | 0.5 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.08 mm² |
