1-1939758-1
ActiveTE Connectivity AMP Connectors

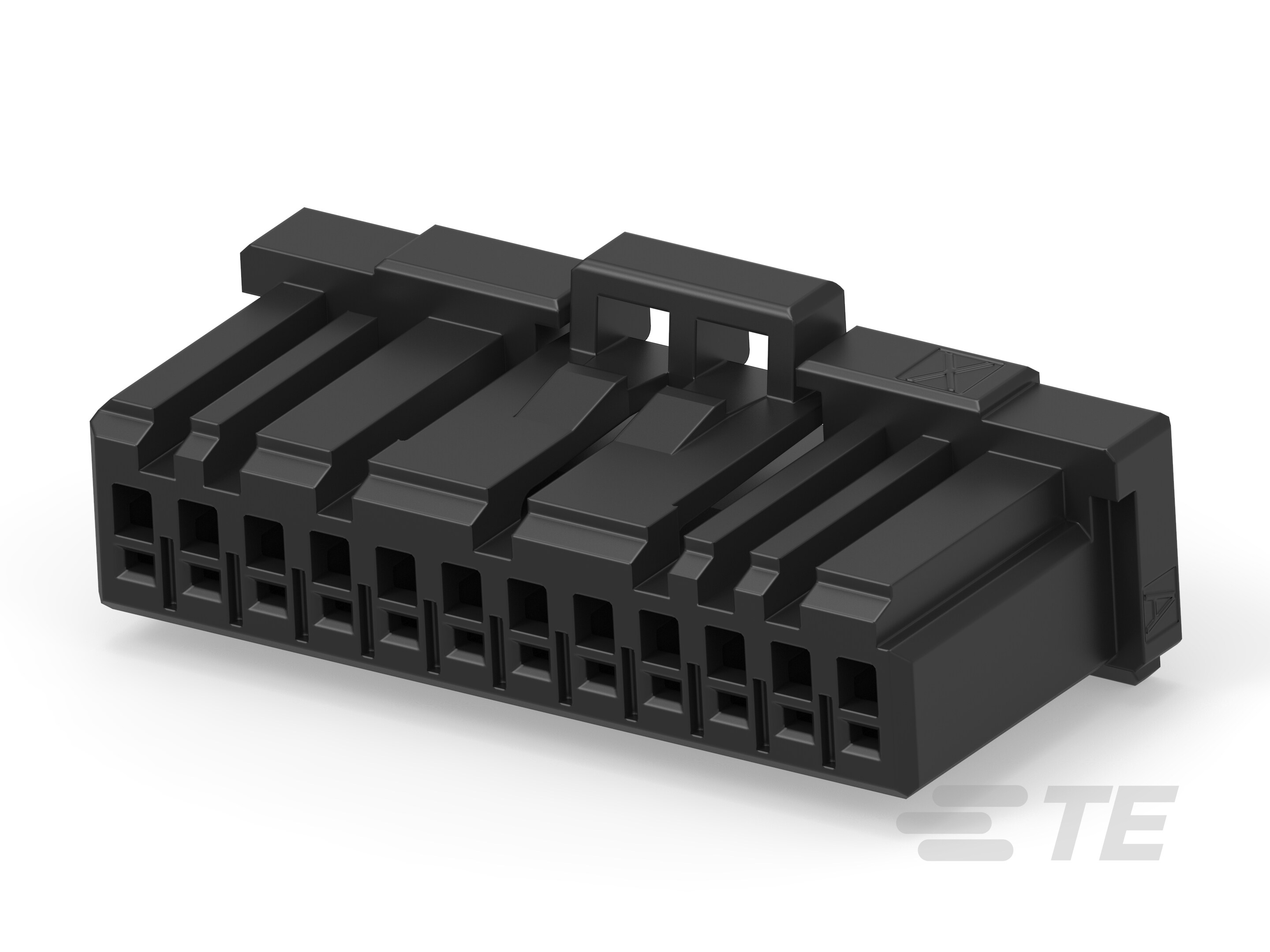

DYNAMIC D1100S REC HSG 12POS. X
1-1939758-1
ActiveTE Connectivity AMP Connectors
DYNAMIC D1100S REC HSG 12POS. X
Description
General part information
1-1939758-1
Housing, Receptacle, Wire-to-Board, 12 Position, 2 mm [.079 in] Centerline, Crimp, 1 Row, Black, Wire & Cable, Signal, Cable Mount (Free-Hanging)
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1939758-1 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Features | Polarizing Key |
| Insulation Material | Polyester, Thermoplastic, Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 12 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.079 in |
