B82730G3601A020
ActiveEPCOS - TDK Electronics
CMC 4.7MH 600MA 2LN TH
B82730G3601A020
ActiveEPCOS - TDK Electronics
CMC 4.7MH 600MA 2LN TH
Description
General part information
B82730G3601A020

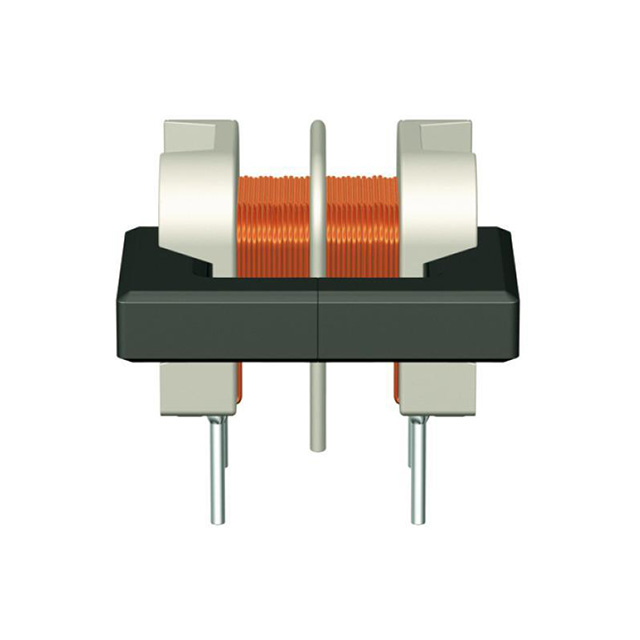

4.7 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 600mA DCR 920mOhm (Typ)
Technical Specifications
Parameters and characteristics for this part
| Specification | B82730G3601A020 |
|---|---|
| Approval Agency | UR, VDE |
| Current Rating (Max) | 600 mA |
| DC Resistance (DCR) (Max) | 920 mOhm |
| DC Resistance (DCR) (Typ) | 920 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.472 in |
| Inductance | 4.7 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4 PC Pin, Horizontal |
| Package Leads | 4 Leads |
| Package Name | Horizontal |
| Size / Dimension Length | 0.65 in |
| Size / Dimension Width | 0.591 in |
| Voltage Rating - AC | 300 V |
