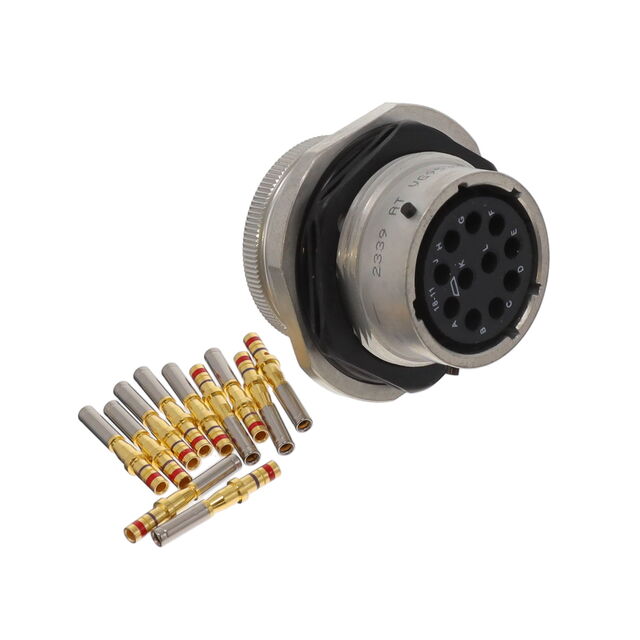

VG95328D18-11SNJ
ActiveMcGill Microwave Systems
CIRCULAR MIL SPEC CONNECTOR RECEPTACLE CRIMP, 11 CONTACTS
VG95328D18-11SNJ
ActiveMcGill Microwave Systems
CIRCULAR MIL SPEC CONNECTOR RECEPTACLE CRIMP, 11 CONTACTS
Description
General part information
VG95328D18-11SNJ
11 Position Circular Connector Receptacle, Female Sockets Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | VG95328D18-11SNJ |
|---|---|
| Applications | Military |
| Color | Black |
| Connector Type | Receptacle, Female Sockets |
| Fastening Type | Reverse Bayonet Lock |
| Number of Positions | 11 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Orientation | N (Normal) |
| Shell Finish | Zinc-Tin |
| Shell Size - Insert Length | 18 mm |
| Shell Size - Insert Width | 11 mm |
| Shielding | Shielded |
| Termination | Crimp |
